AIRSYS UNICOOL 11V1T3 - Page 22

Contact: AIRSYS North America Phone: (855) 874-5380 Page 22 of 112
Email: ASNSupport@air-sys.com Web: http://airsysnorthamerica.com Rev 1.15

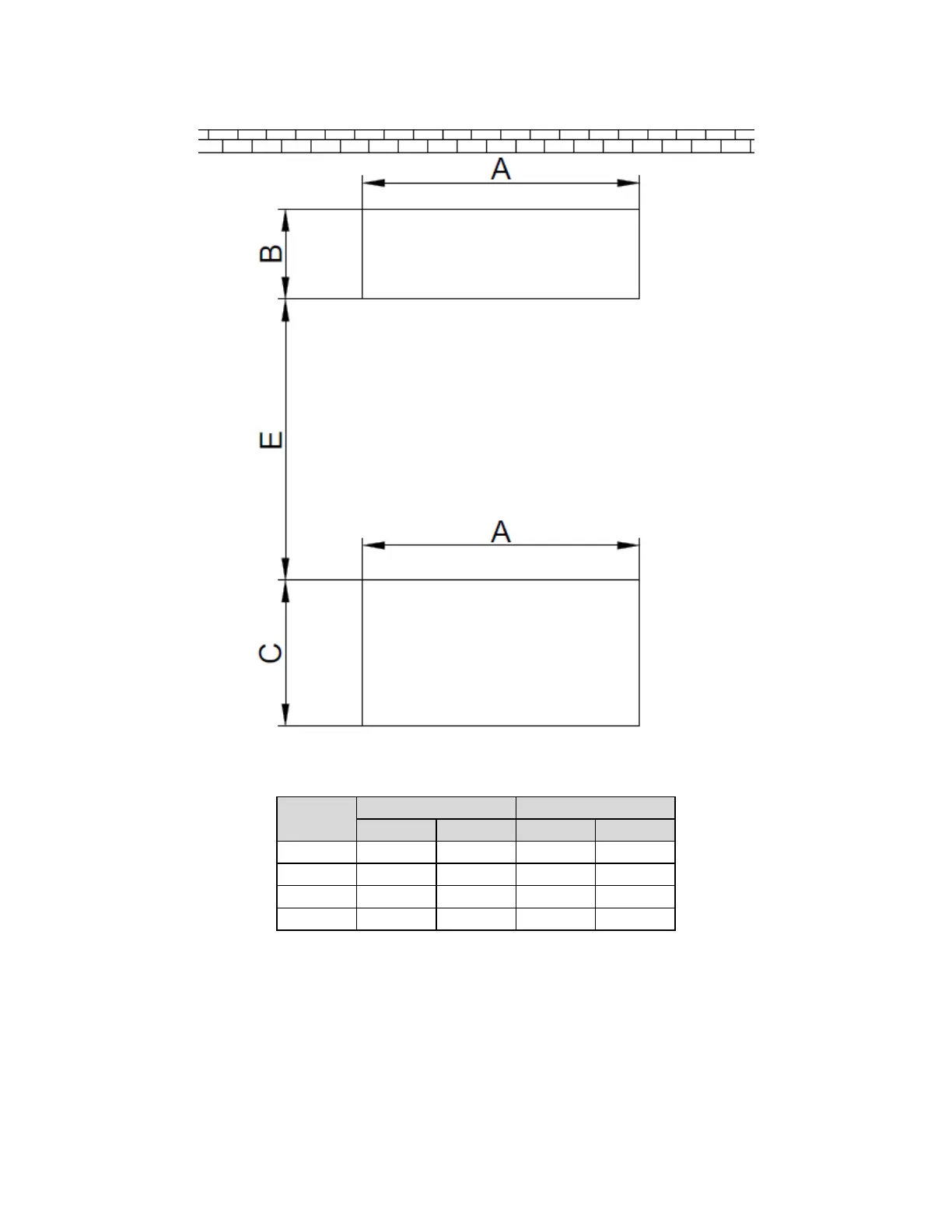

Figure 5: Openings and Holes in the Wall (Top Supply)
Cabinet
Size
T3
T4
in
mm
in
mm
A
29-3/4
756
29-3/4
756
B
9-11/16
246
9-11/16
246
C
15-11/16
398
15-11/16
398
E
30-1/4
768
30-1/4
768
Note: The template
printed on the shipping
carton can be used to
create wall cuts.
