Chapter 8: Spare Parts
For all part requests, please contact:
AIRSYS North America
Web: http://airsysnorthamerica.com
Email: ASNSupport@air-sys.com
Phone: 855-874-5380

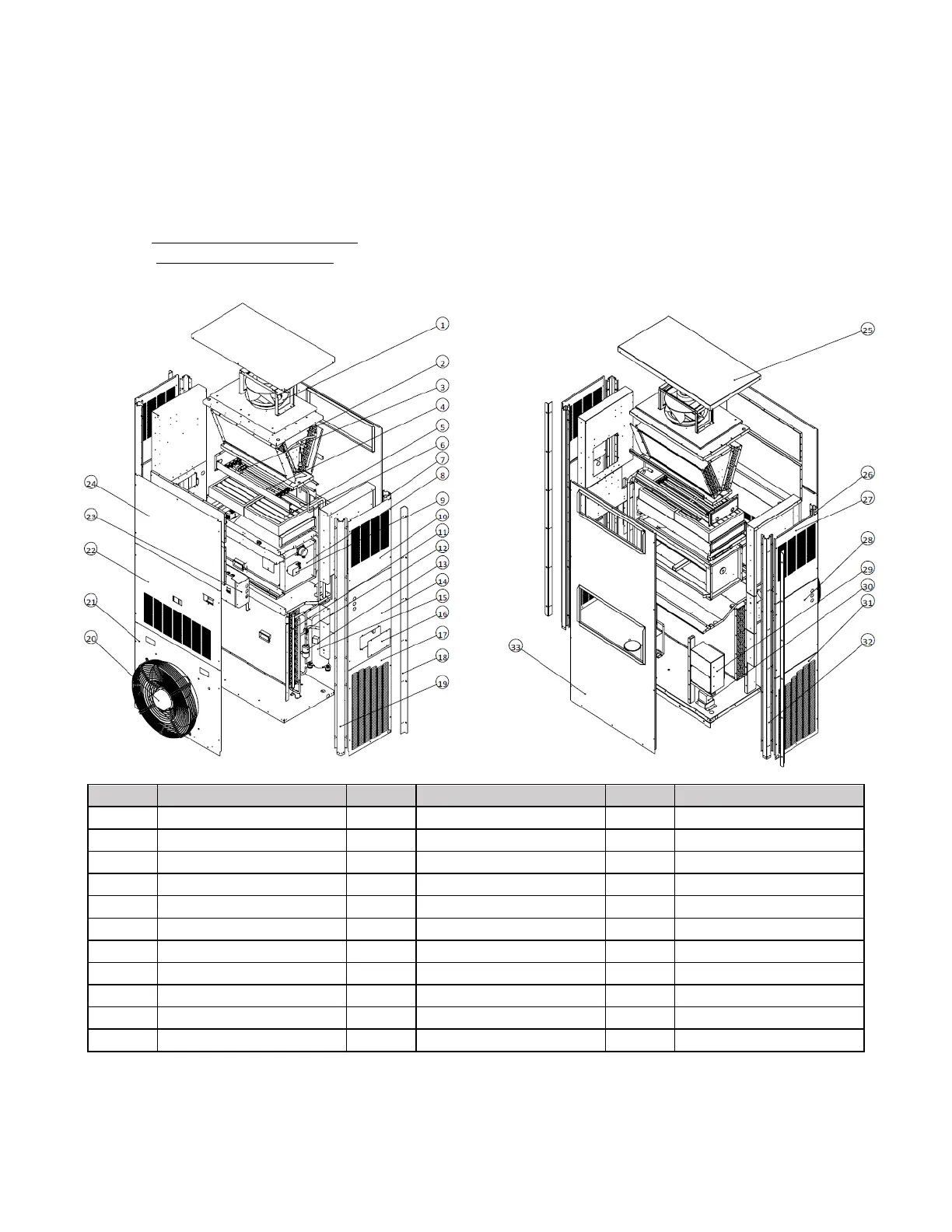

Figure 47: Top Supply WPU Part Identification
Number
Part Name
Number
Part Name
Number
Part Name
1
Supply Fan
12
Sight Glass
23
Electrical Box
2
Evaporator Coil
13
Dry Filter
24
Panel, Front Upper
3
Thermal Cutoff Switch
14
Panel, Right Middle
25
Panel, Top
4
Electric Heater
15
Compressor
26
Corner Post, Left Front
5
Main Filter
16
Panel, Damper Inspection
27
Panel, Left Upper
6
Electronic Expansion Valve
17
Panel, Right Bottom
28
Panel, Left Middle
7
Corner Post, Right Back
18
Installation Support Bar
29
Inverter
8
Damper Assembly
19
Corner Post, Right Bottom
30
Detuned Reactor
9
Damper Actuator
20
Condenser Fan
31
Panel, Left Bottom
10
Panel, Right Upper
21
Panel, Front Bottom
32
Corner Post, Left Back
11
Condenser Coil
22
Panel, Front Middle
33
Panel, Back
