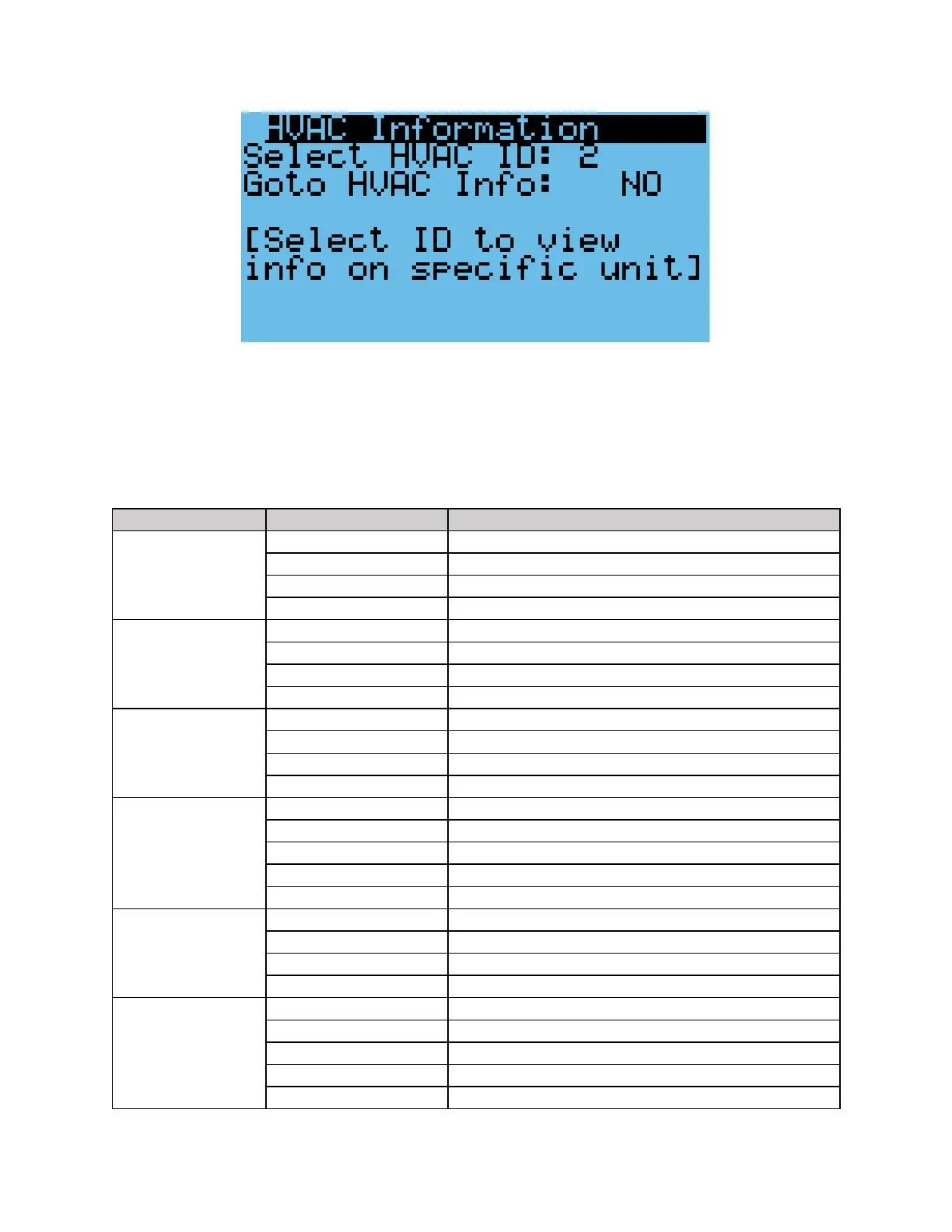

Figure 28: HVAC ID Select Screen
7. Press Down until “NO” becomes “YES” and press Enter.
8. Press Down until a menu titled “Info” is displayed.
9. Press Up or Down to scroll through the unit information.
Table 13: Unit Info Menu
Menu Screen
Parameter
Description
Capacity Regulation
Unit request.
Compressor speed requested by the unit
Required cap.
Compressor speed requested by the controller
Actual cap.
Current compressor speed (%)
Actual speed
Current compressor speed (rps)
Inverter Info
DC Voltage
DC voltage to inverter
Current
Current to inverter
Amb Temp.
Ambient temperature
Driver temperature
Inverter driver temperature
Refrig. Pressure
Suct. Pressure
Suction pressure
Disc. Pressure
Discharge pressure
Press. Diff.
Pressure difference between compressor suction and discharge
Press. Ratio
Pressure ratio between compressor suction and discharge
Refrig. Temperature
Disc. Temp
Discharge temperature
Cond. Temp
Condensing temperature
Cond. Sat. Temp
Condensation saturation pressure
Suct. Temp
Suction temperature
Suct. Sat. Temp
Suction saturation temperature
EEV Info
EEV Step
EEV Step
EEV Status
EEV opening percentage
Super Cool
Unit Subcooling
Super Heat
Unit Superheat
Sensor Reading
Supply temp.
Unit supply temperature reading
Return temp.
Unit return temp reading
Outdoor temp.
Unit outdoor temperature reading
Humidity
Unit humidity reading
Backup temp.
Unit backup temperature sensor reading
