7210 SAS-T Overview
7210 SAS-T Installation Guide Page 9
Hardware Description

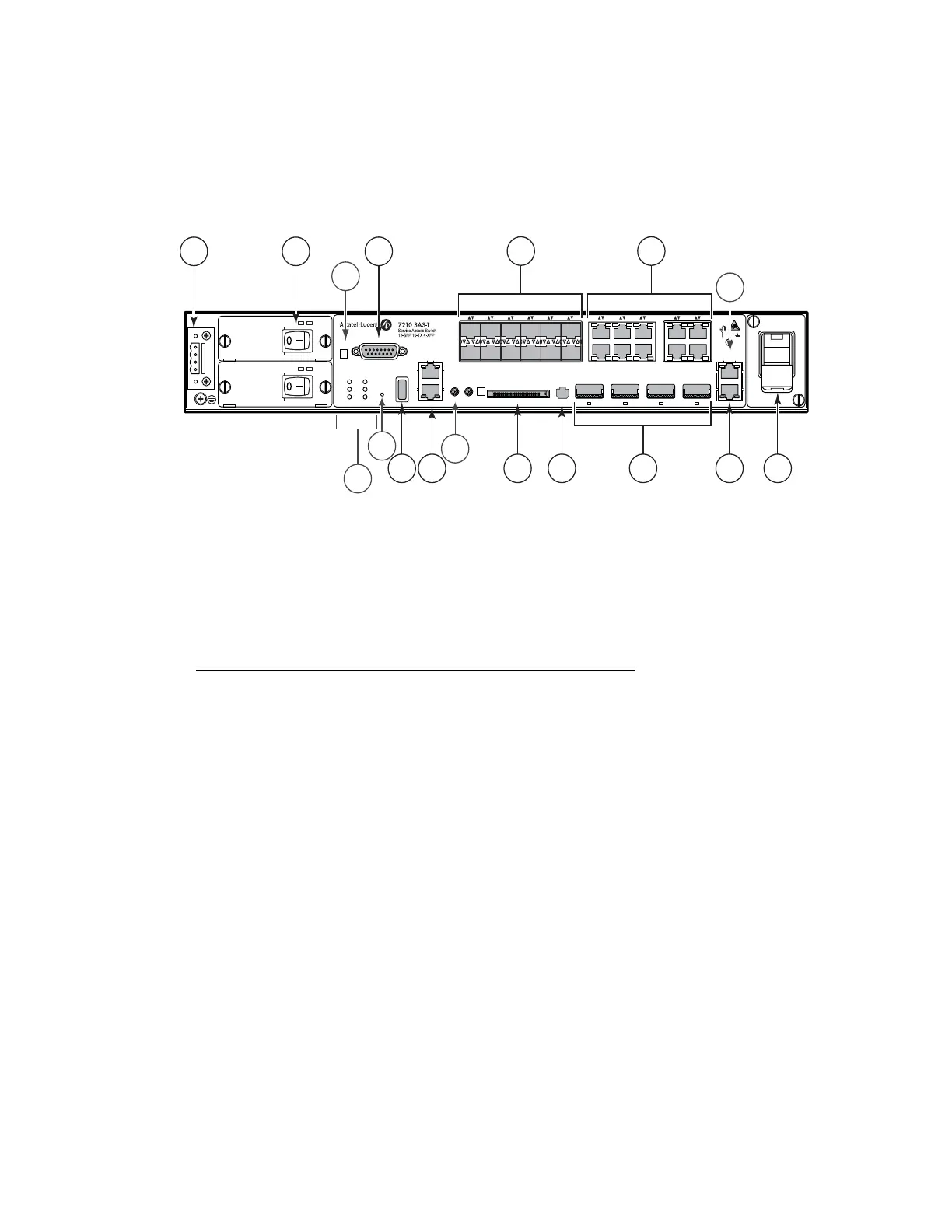

Figure 3: 7210 SAS-T (Non-ETR Variant) Front Panel
Crit
Maj
Fan
Status
PS1
PS2
USB
Alarm
–48V +12V
DC
PEM
200W
–48V +12V
DC
PEM
200W
CF2
OMC
23 24 25 26
Management
Fan
1PPS
BITS2/ToD2
BITS1/ToD1
10MHz
ACO
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
–A
+A
–B
+B
SAS_T_012
135 8 14 11 1217
21 4
9 16
Reset
3
6
7
10
15
Table 2: 7210 SAS-T (Non-ETR Variant) Front Panel Features
Key Description
1 Ground and DC power connection
2 Power trays
3 LEDs
4 Alarm connector
5USB port
6 Alarm cut off button
7 Reset button
8 External Compact Flash memory card slot (cf2:\)
9 100/1000 fiber-optic SFP ports
10 Management port
11 Console port
12 Fan tray
