Alcatel-Lucent 7210 SAS-T User Manual

Installing Your Switch
Page 36 7210 SAS-T Installation Guide
Desktop or Shelf Mounting
Step 1 Attach the four adhesive feet to the bottom of the first switch. See Figure 15.

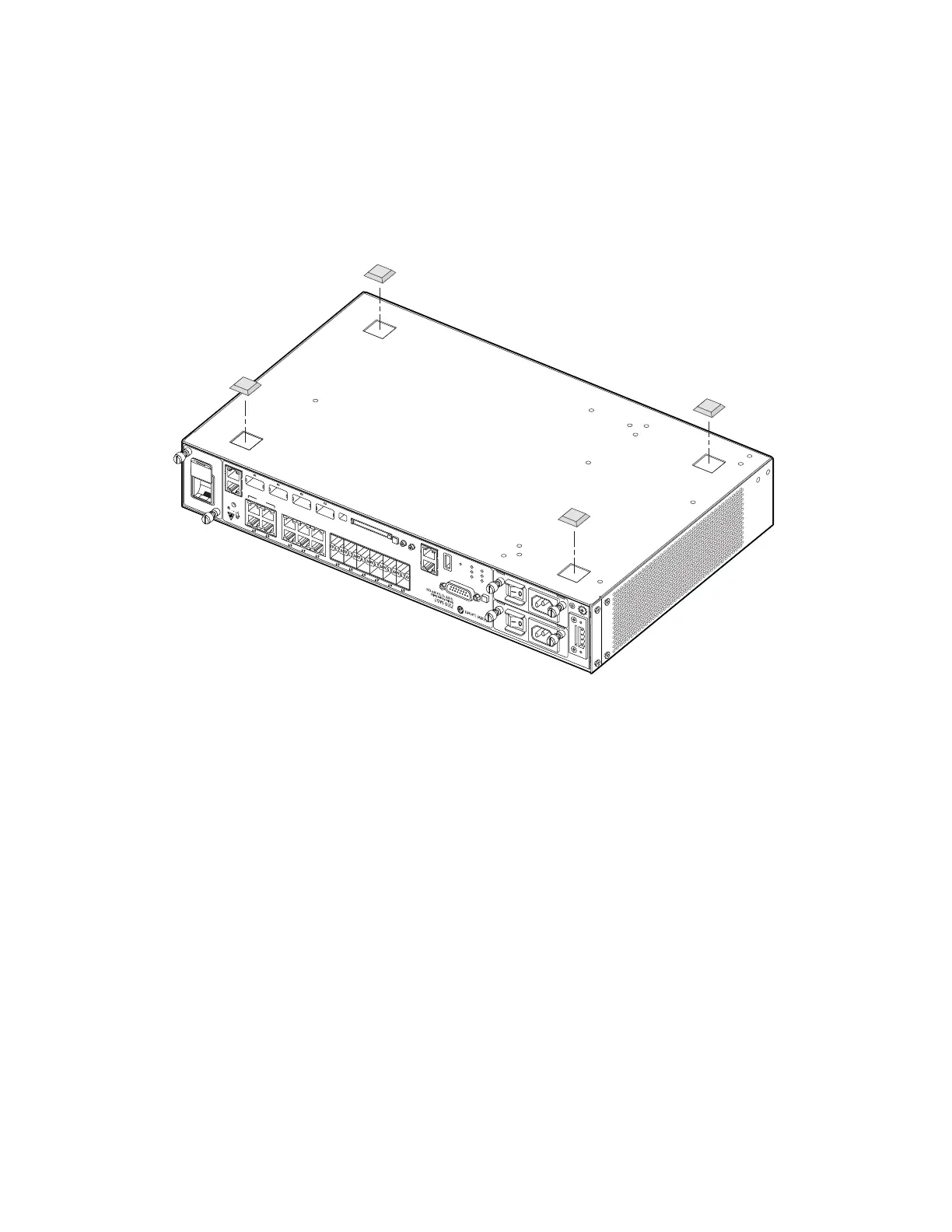

Figure 15: Attaching the Adhesive Feet
Step 2 Set the device on a flat surface near an external power source, making sure there are at
least three inches of space on the front and sides for proper air flow.
Step 3 If you are installing a single switch, proceed to "Grounding the Chassis" on page 37.
Step 4 If you are installing multiple switches, attach four adhesive feet to each switch. Place each
device squarely on top of the one below, in any order.
Crit
Maj
Fan
Status
PS1
PS2
Alarm
100 – 240V – 50 – 60Hz 3A
100 – 240V – 50 – 60Hz 3A
AC ETR
Power
Module
200W
AC ETR
Power
Module
200W
CF2
OMC
23 24
25
26
Fan
1PPS
10MHz
ACO
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
POE
Management
–A
+A
–B
+B
USB
BITS2/ToD2
BITS1/ToD1
Reset
SAS_T_019
