Removing an Adapter Card

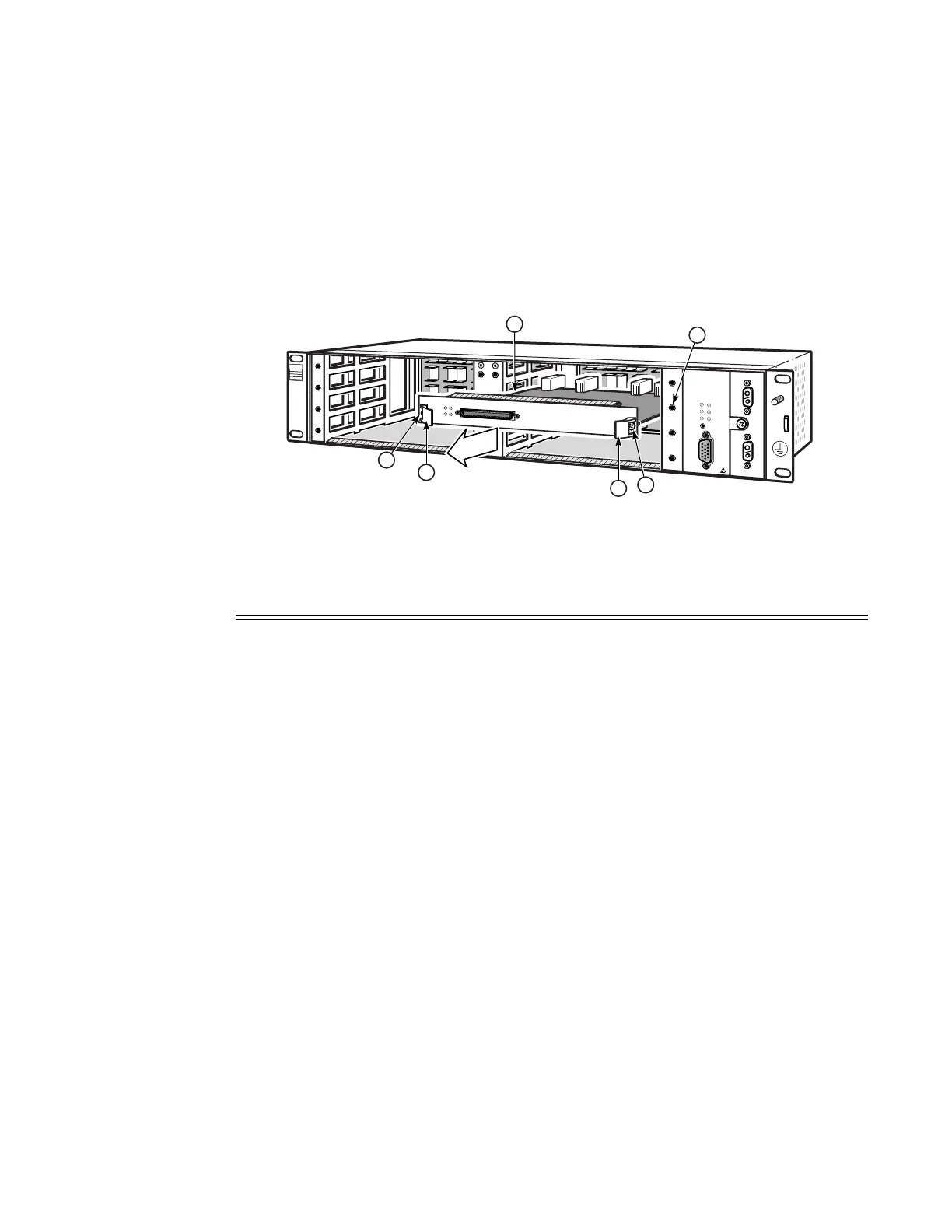

Figure 40 illustrates removing an adapter card.
Tools required:
• Phillips screwdriver
Figure 40: Removing an Adapter Card
Table 31: Adapter Card Installation Features
Key Description
1Card guide
2 Threaded receptacle
3 Captive screws
4 Ejector lever
