Hardware Overview
Except on the first page, right running head:
Heading1 or Heading1NewPage text (automatic)
28
Alcatel-Lucent
Beta Beta
OmniAccess 780 Hardware Users Guide

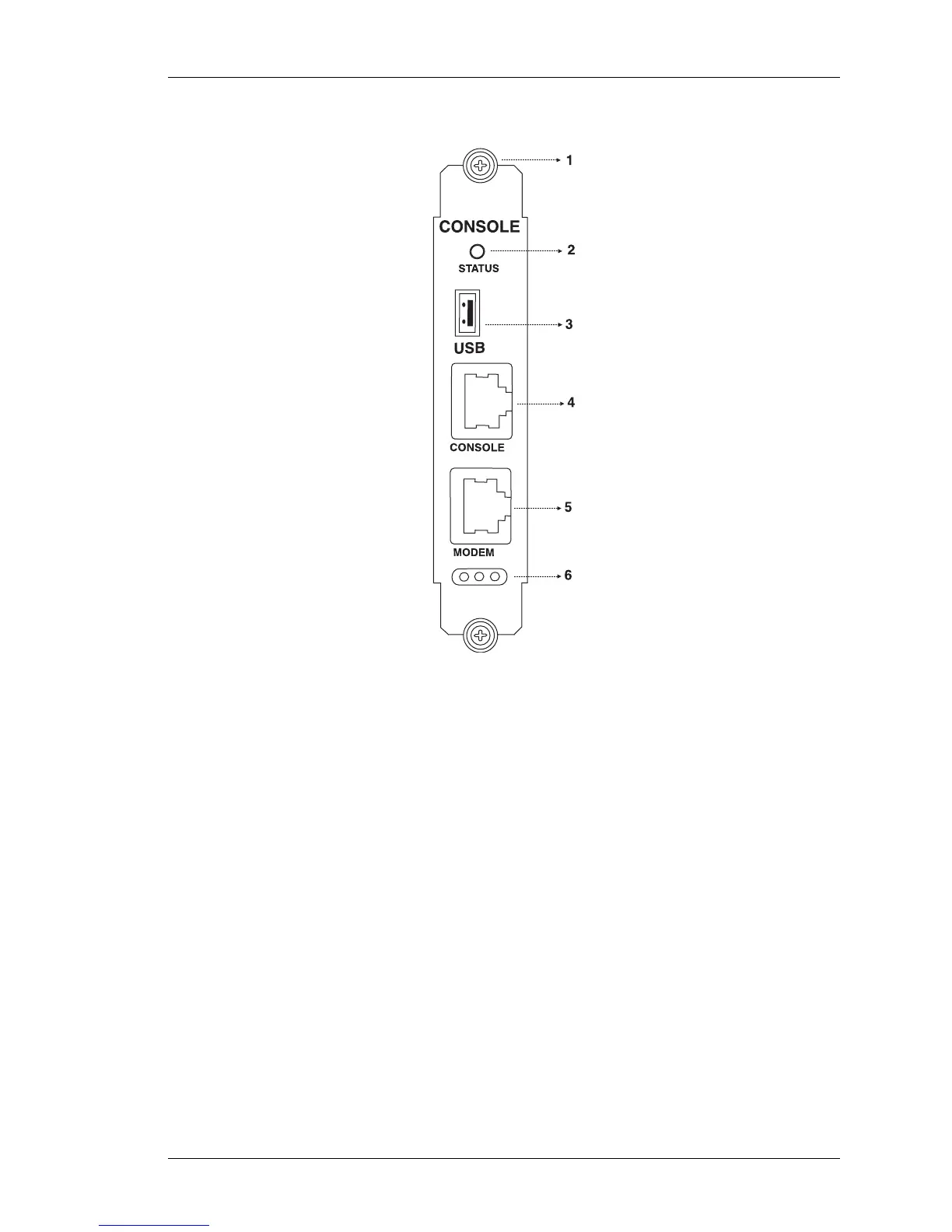

1 Thumb Screw
2 Status LED
3 USB Port
4 Console Port
5 Modem Port
6 Port LEDs
Figure 12: Ports on Fan Tray
