Allen-Bradley DeviceNet 1761-NET-DNI User Manual

1761-6.5
Application Examples
7-9
0004
B3:31
11
MOV
Move
Source I:0.0
341<
Dest N7:89
341<
MOV
MOV
Move
Source I:0.1
0<
Dest N7:80
0<
MOV
0005
N7:82
9
N7:82
12
N7:82
14
T4:38
DN
EN
DN
TON
Timer On Delay
Timer T4:38
Time Base 0.01
Preset 100<
Accum 0<
TON
0006
END
0003
N7:82
13
B3:31
11
N7:82
12
U
N7:82
15
T4:38
DN

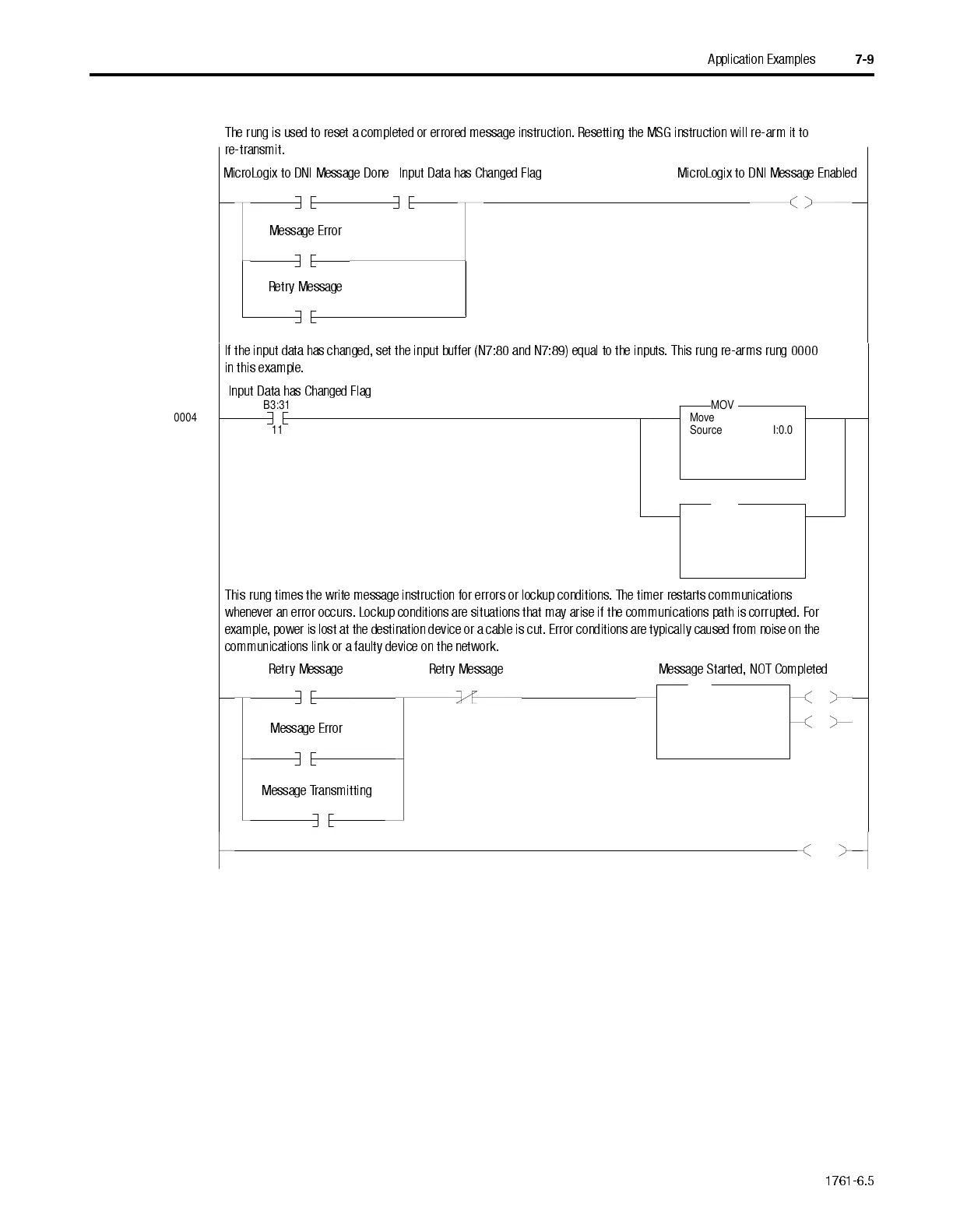

The rung is used to reset a completed or errored message instruction. Resetting the MSG instruction will re-arm it to
re-transmit.
MicroLogix to DNI Message Done Input Data has Changed Flag MicroLogix to DNI Message Enabled
Message Error
Retry Message
If the input data has changed, set the input buffer (N7:80 and N7:89) equal to the inputs. This rung re-arms rung 0000
in this example.
Input Data has Changed Flag
This rung times the write message instruction for errors or lockup conditions. The timer restarts communications
whenever an error occurs. Lockup conditions are situations that may arise if the communications path is corrupted. For
example, power is lost at the destination device or a cable is cut. Error conditions are typically caused from noise on the
communications link or a faulty device on the network.
Retry Message Retry Message Message Started, NOT Completed
Message Error
Message Transmitting
