Add a Kinetix 5500 Drive to a Logix Designer Application Chapter 1

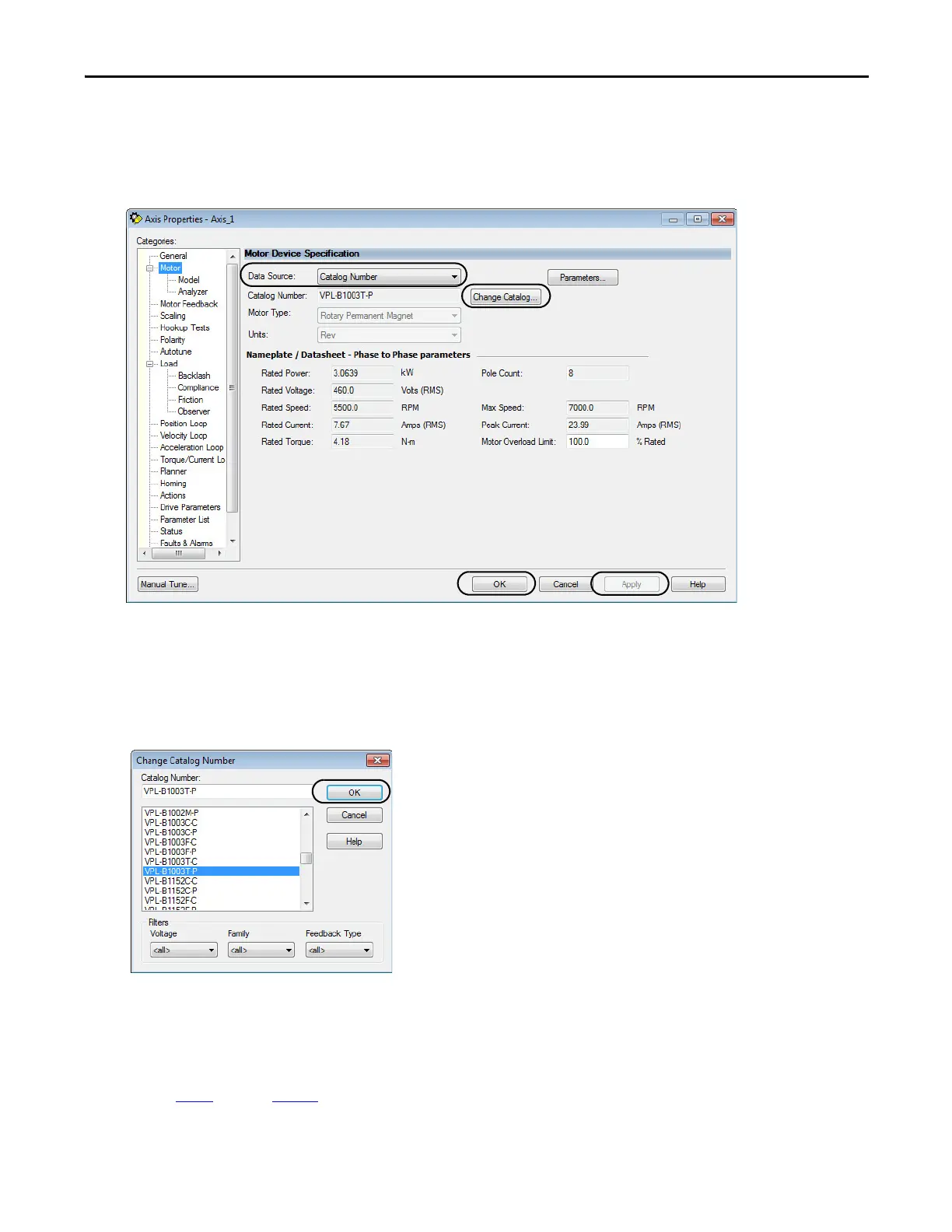

The Motor Device Specification dialog box opens.
7. From the Data Source pull-down menu, choose Catalog Number.
8. Click Change Catalog.
The Change Catalog Number dialog box opens.
9. Select the motor catalog number appropriate for your application.
To verify the motor catalog number, refer to the motor name plate.
10. On the Change Catalog Number dialog box, click OK.
11. On the Motor Device Specification dialog box, click Apply.
Motor data specific to your motor appears in the Nameplate / Datasheet - Phase to Phase parameters field.
12. On the Motor Device Specification dialog box, click OK.
13. Repeat
step 1 through step 12 for each servo motor axis.
