Allen-Bradley Kinetix 6000 User Manual

Rockwell Automation Publication 2094-UM001J-EN-P - March 2017 161
Configure and Start the Kinetix 6000 Drive System Chapter 6
12. Determine if your test completed successfully.
13. Repeat Test and Tune the Axes
for each axis.

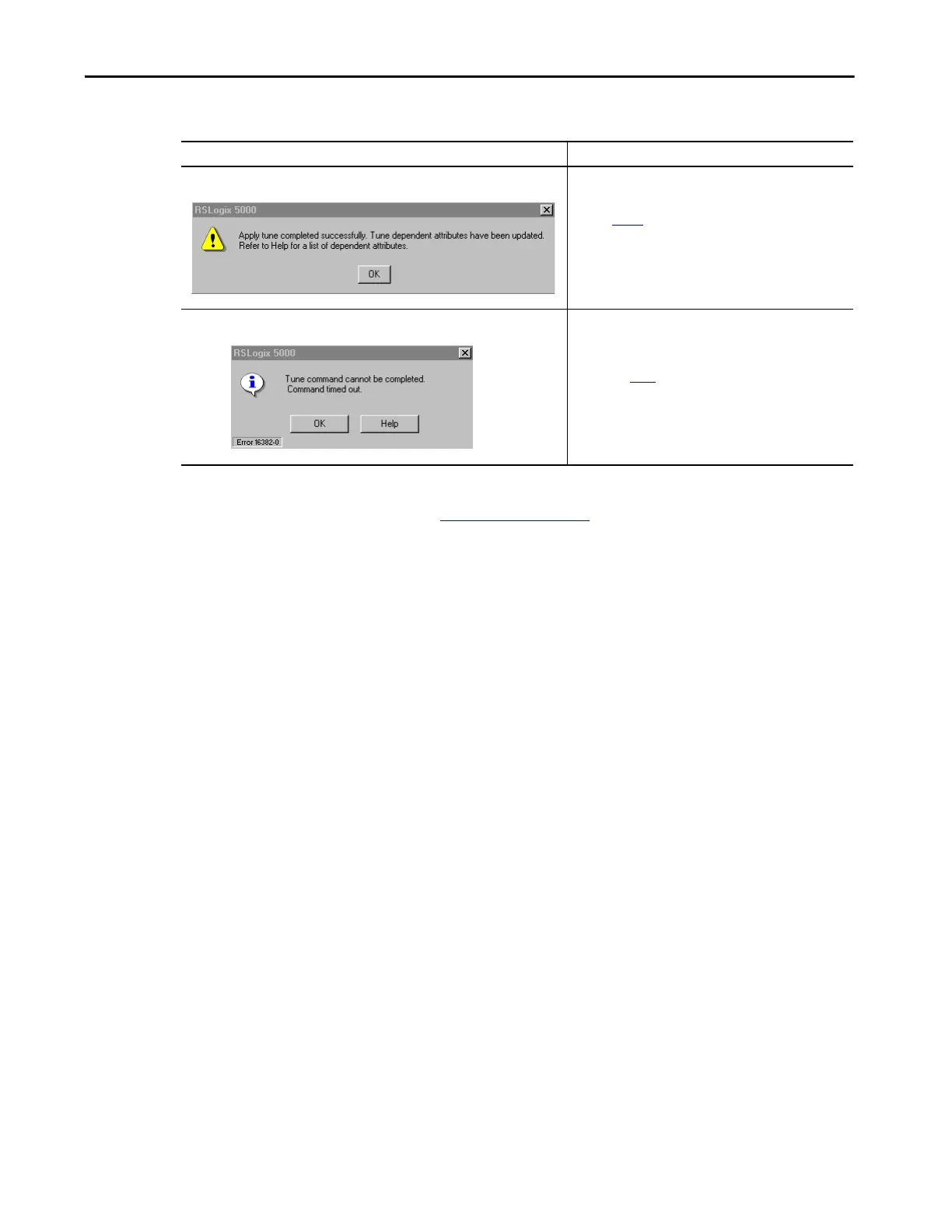

If Then
Your test completes successfully, this dialog box opens. 1. Click OK.
2. Remove the Hardware Enable Input
(1)
signal (IOD-2) applied
earlier.
3. Go to step 13
.
Your test failed, this dialog box opens. 1. Click OK.
2. Make an adjustment to motor velocity.
3. Refer to the appropriate Logix5000 motion module user
manual for more information.
4. Return to step 7
and run the test again.
(1) The hardware enable input for IDM units is on the IPIM module.

Allen-Bradley Kinetix 6000 Specifications

General

Control Type	Digital
Feedback	Resolver, Encoder
Protection Rating	IP20
Power Range	0.4…22 kW
Communication	Ethernet/IP
Ambient Temperature	0°C to 50°C
Axis	Single-axis, Multi-axis
Safety	Safe Torque-Off
Control Modes	Velocity, Torque, Position
Relative Humidity	5% to 95% (non-condensing)
Vibration Resistance	5.9 m/s² (0.6 g) from 10 Hz to 500 Hz
Shock Resistance	15 g, 11 ms
Storage Temperature	-40°C to 70°C
