Rockwell Automation Publication 2094-UM001J-EN-P - March 2017 87
Connect the Kinetix 6000 Drive System Chapter 5
Ungrounded Power Configurations
The ungrounded power configuration (Figure 42) does not provide a neutral
ground point. Ungrounded, impedance-grounded, and corner-grounded
power configurations are allowed, but you must move a jumper (internal to the
IAM module) across a 120 kΩ resistor. The IAM module ground jumper
(default configuration) is set for grounded power distribution.

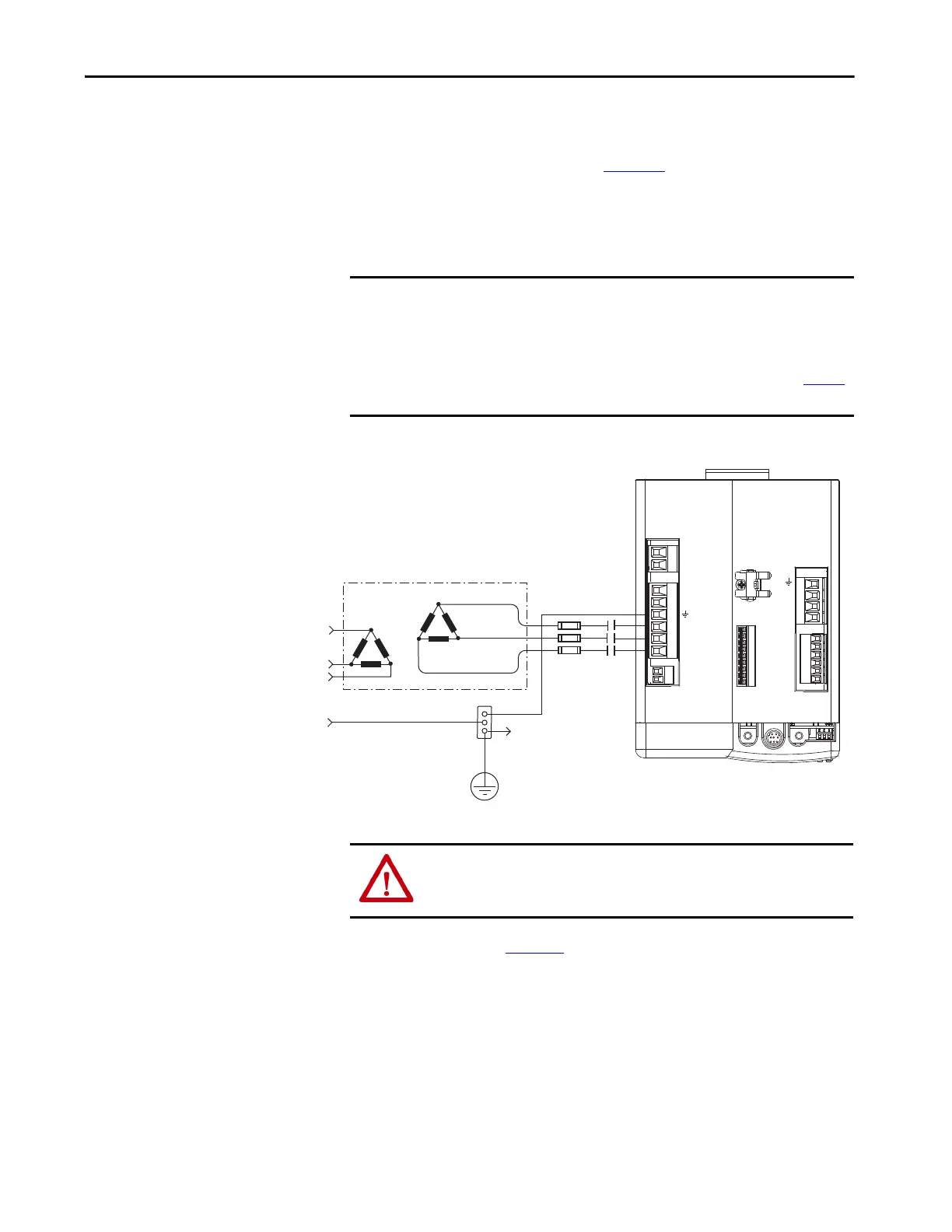

Figure 42 - Ungrounded Power Configuration
Refer to Appendix A on page 187, for input-power interconnect diagrams with
and without the LIM module.
IMPORTANT If you determine that you have ungrounded, impedance-grounded, or
corner-grounded power distribution in your facility, you must move the
ground jumper (configured for grounded power) to the ungrounded power
position inside the IAM module.
Refer to Set the Ground Jumper in Select Power Configurations on page 89
for more information.
L3
L2
L1
DC-
DC+
L3
L2
L1
CONT EN-
CONT EN+
W
V
U
MBRK -
MBRK +
COM
PWR
DBRK -
DBRK +
CTRL 2
CTRL 1
1 2 3 4
1 2 3 4 5 6
1 2
1 2 3 4 5 6
1 2
1 2 3 4 5 6 7 8 9
BAUD
RATE
TX
RX
DPI
Transformer
Kinetix 6000 IAM Module,
Top View
Three-phase
Input VAC
Chassis Ground
Bonded Cabinet
Ground
Ground Grid or
Power Distribution Ground
Connect to power rail
ground stud.
Circuit
Protection
M1
Contactor
Transformer (Delta) Secondary
ATTENTION: Ungrounded systems do not reference each phase potential to
a power distribution ground. This can result in an unknown potential to
earth ground.
