Allen-Bradley Micro800

Chapter 7 Binary instructions
134 Rockwell Automation Publication 2080-RM001D-EN-E - February 2015
Integer bit-to-bit negation mask, NOT_MASK inverts a parameter value.
Arguments
Parameter
Parameter
Type
Data Type Description
EN Input BOOL Function enable.
When EN = TRUE, execute the bit-to-bit negation mask computation.
When EN = FALSE, there is no computation.
IN Input DINT Must have integer format.
NOT_MASK Output DINT Bit-to-bit negation on 32 bits of IN.
ENO Output BOOL Enable out.

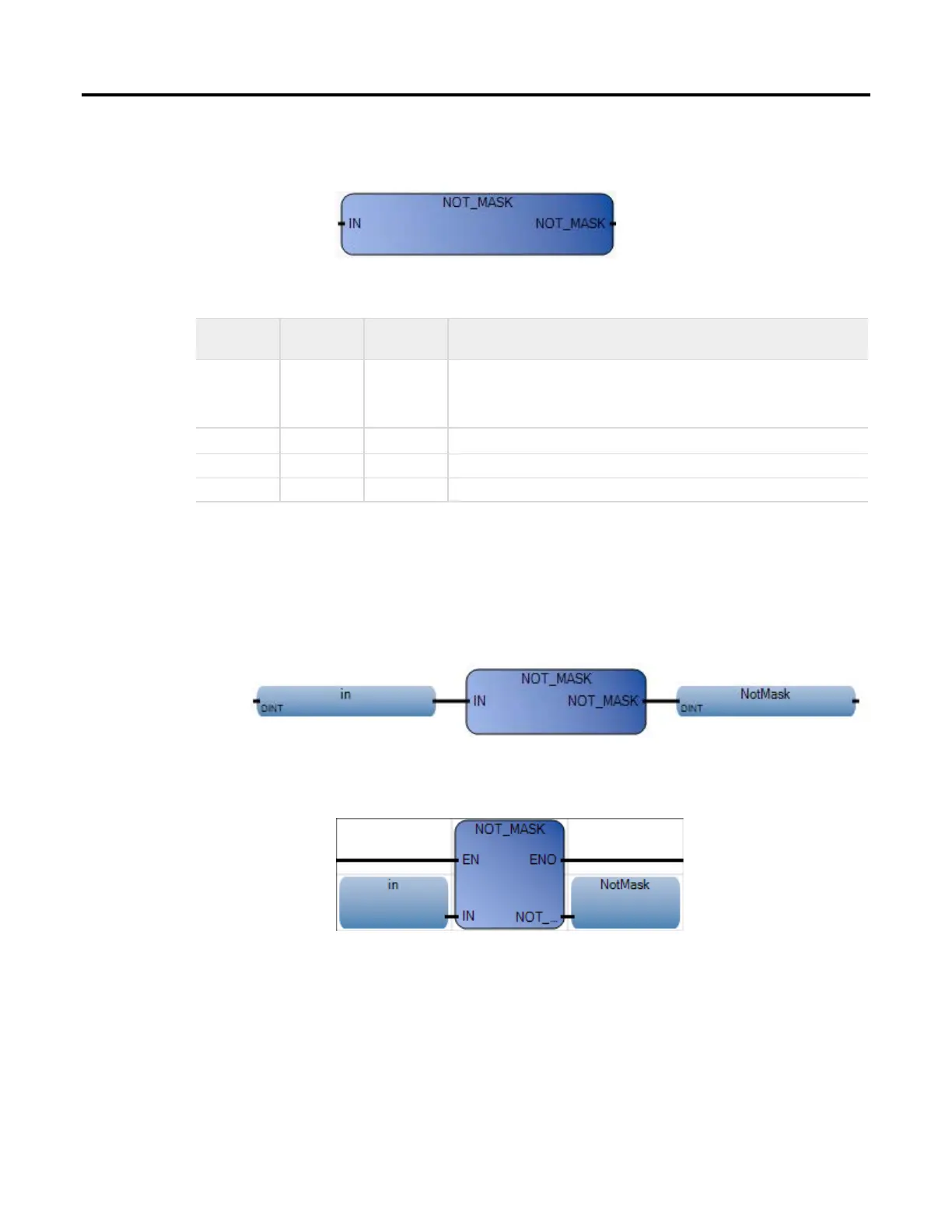

NOT_MASK function language example
Function block diagram
Ladder diagram
NOT_MASK
