Allen-Bradley Micro800

Communication instructions Chapter 9
Rockwell Automation Publication 2080-RM001D-EN-E - February 2015 225
Values for the MSG_CIPGENERIC AppCfg parameter
Use the values from the CIP register object in your input variables to configure the

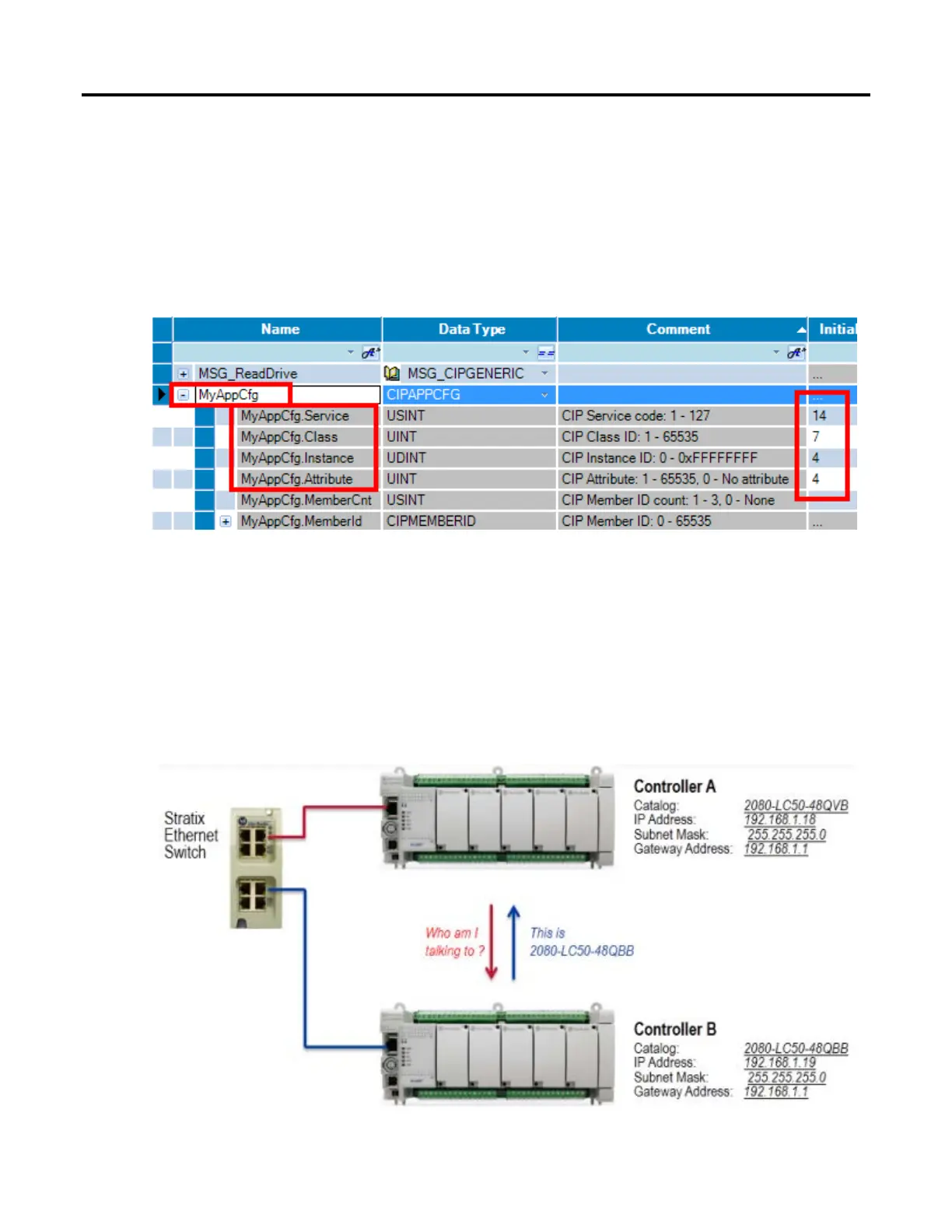

MSG_CIPGENERIC function block parameters. The following image shows
how the CIP register object data values are used in the MSG_CIPGENERIC
function block parameters.
Example: How to create a MSG_CIPGENERIC messaging program to
read data from a controller
This example shows you how to create a message program to retrieve Controller
B's catalog information from Controller A using a MSG_CIPGENERIC function
block and a COP function block.
