Binary instructions Chapter 7
Rockwell Automation Publication 2080-RM001D-EN-E - February 2015 141

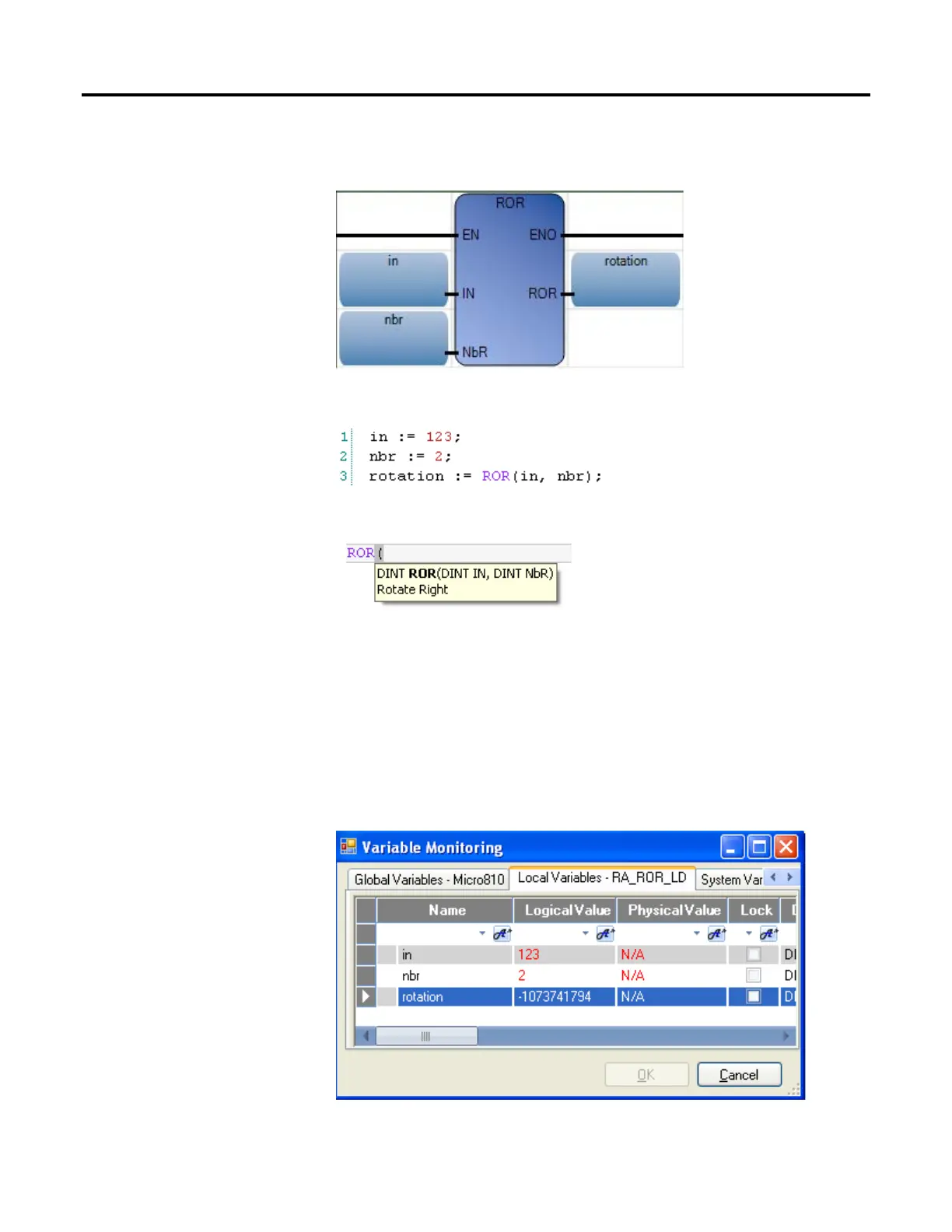

Ladder diagram
Structured text
(* ST Equivalence: *)
result := ROR (register, 1);
(* register = 2#0100_1101_0011_0101 *)
(* result = 2#1010_0110_1001_1010 *)
Results
