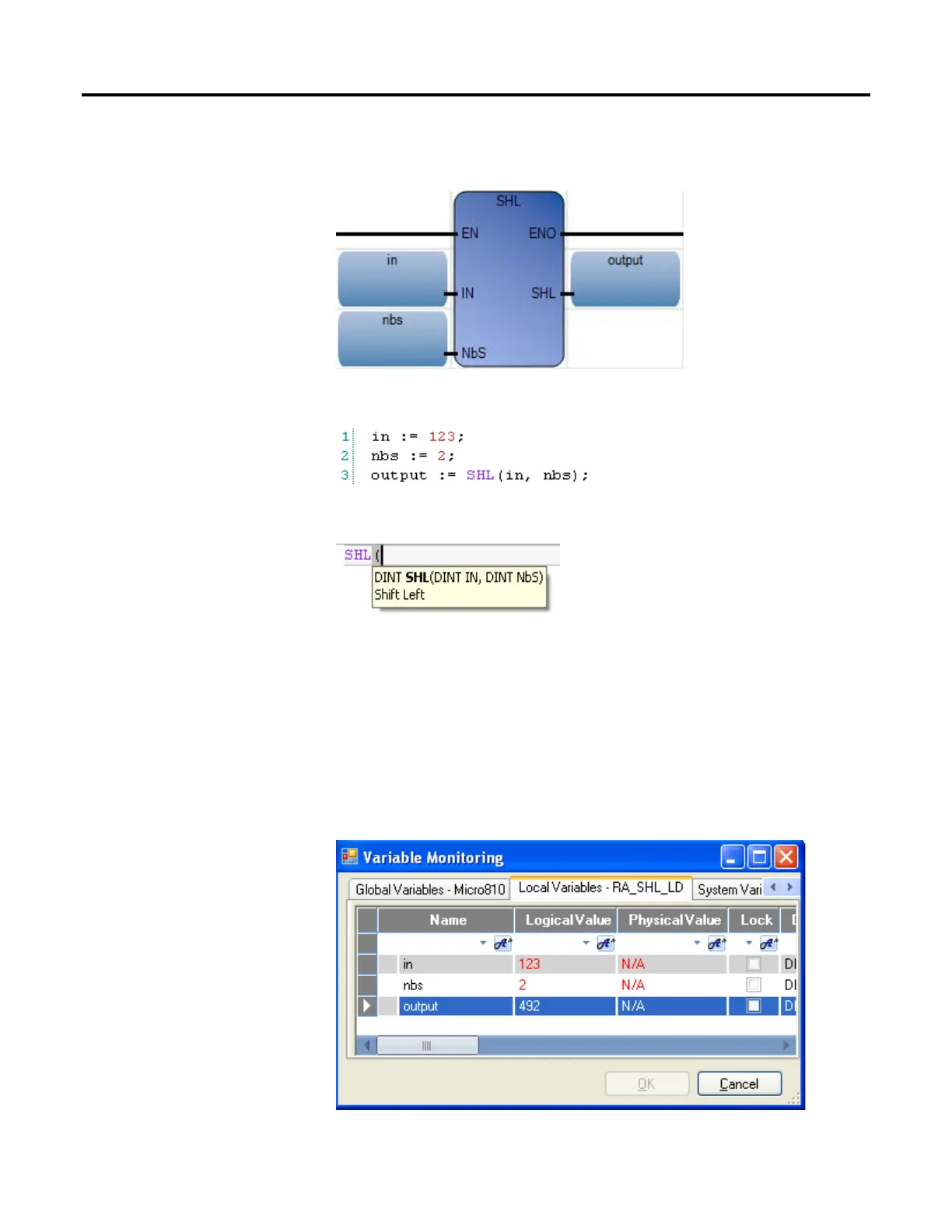

Ladder diagram
Structured text
(* ST Equivalence: *)
result := SHL (register,1);
(* register = 2#0100_1101_0011_0101 *)
(* result = 2#1001_1010_0110_1010 *)
Results
