RS resets dominant bistable.
Arguments
Parameter
Parameter
type
Data type Description
SET Input BOOL If TRUE, sets Q1 to TRUE.
RESET1 Input BOOL If TRUE, resets Q1 to FALSE (dominant).
Q1 Output BOOL Boolean memory state.

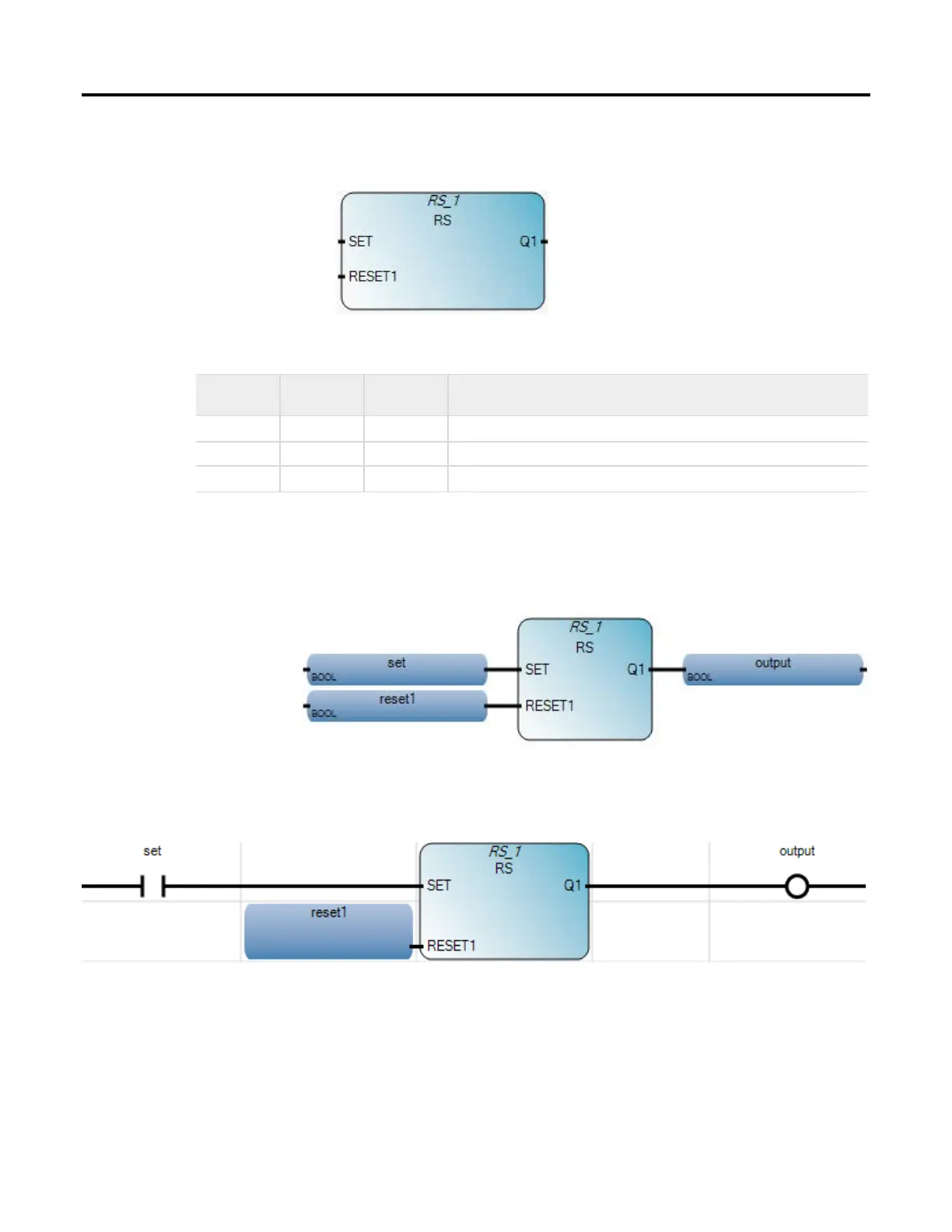

RS function block language examples
Function Block Diagram (FBD)
Ladder Diagram (LD)
RS
