Chapter 15 Input/Output instructions
362 Rockwell Automation Publication 2080-RM001D-EN-E - February 2015
LCD_BKLT_REM arguments
Parameter Parameter type Data type Description
Enable Input BOOL Function block enable.
When Enable = TRUE, execute REM_LCD_BKLT function, overwriting any current backlight
settings.
When Enable = FALSE, REM_LCD_BKLT will be disabled.
Color Input UINT Backlight Color Code
• 0: White
• 1: Blue
• 2: Red
• 3: Green
• 4-65535: Reserved
Mode Input UINT
0 : Permanently OFF
• 1: Permanently ON
• 2: Flash (1 sec interval)
• 3-65535: Reserved
LCD_BKLT_REM Output BOOL When TRUE: Instruction executed successfully.
When FALSE: Error occurred during instruction execution.
Sts Output UINT Status of the remote LCD operation.
See LCD_BKLT_REM status codes on page 363

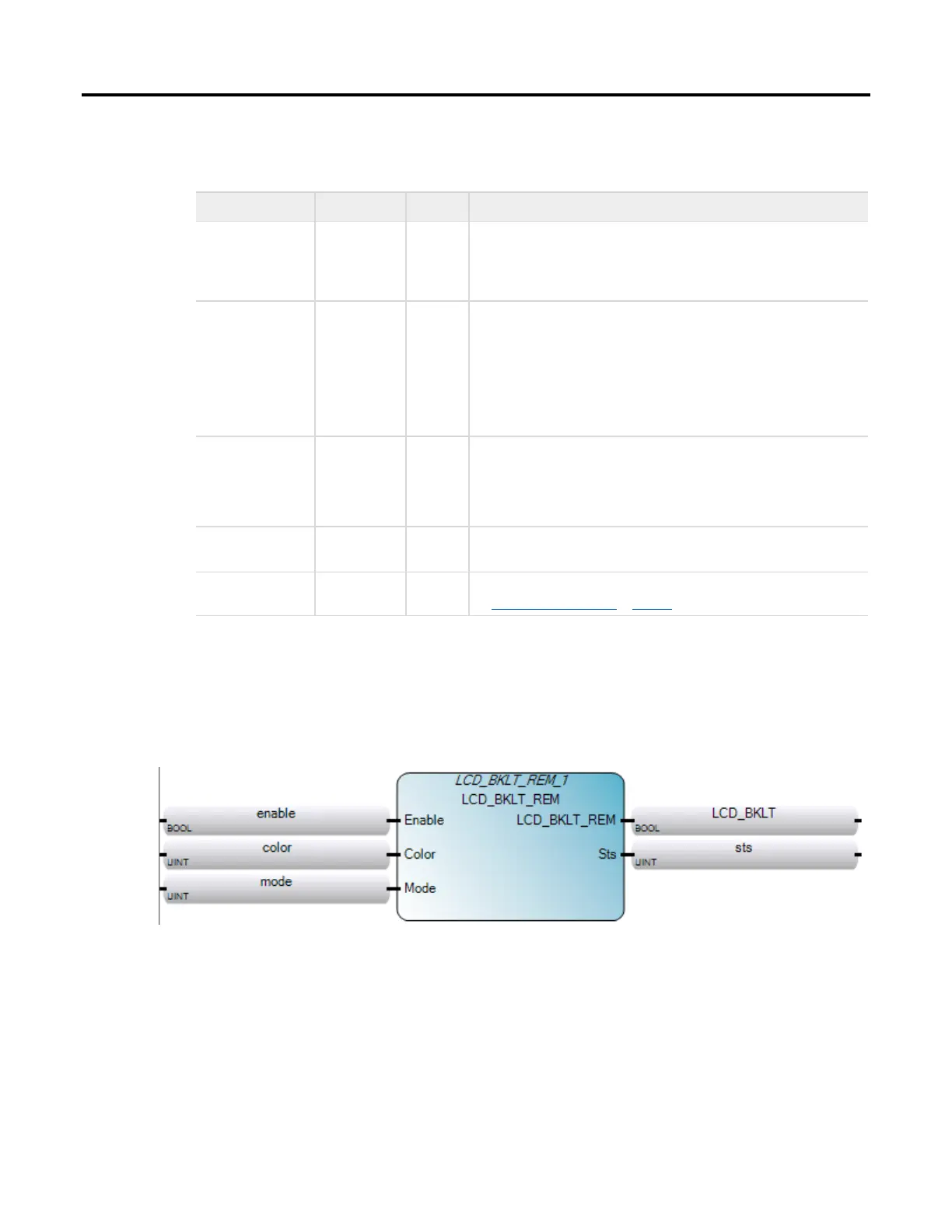

LCD_BKLT_REM function block language examples
Function Block Diagram (FBD)
