Rockwell Automation Publication 6000-UM002E-EN-P - April 2018 111
Preventative Maintenance and Component Replacement Chapter 5

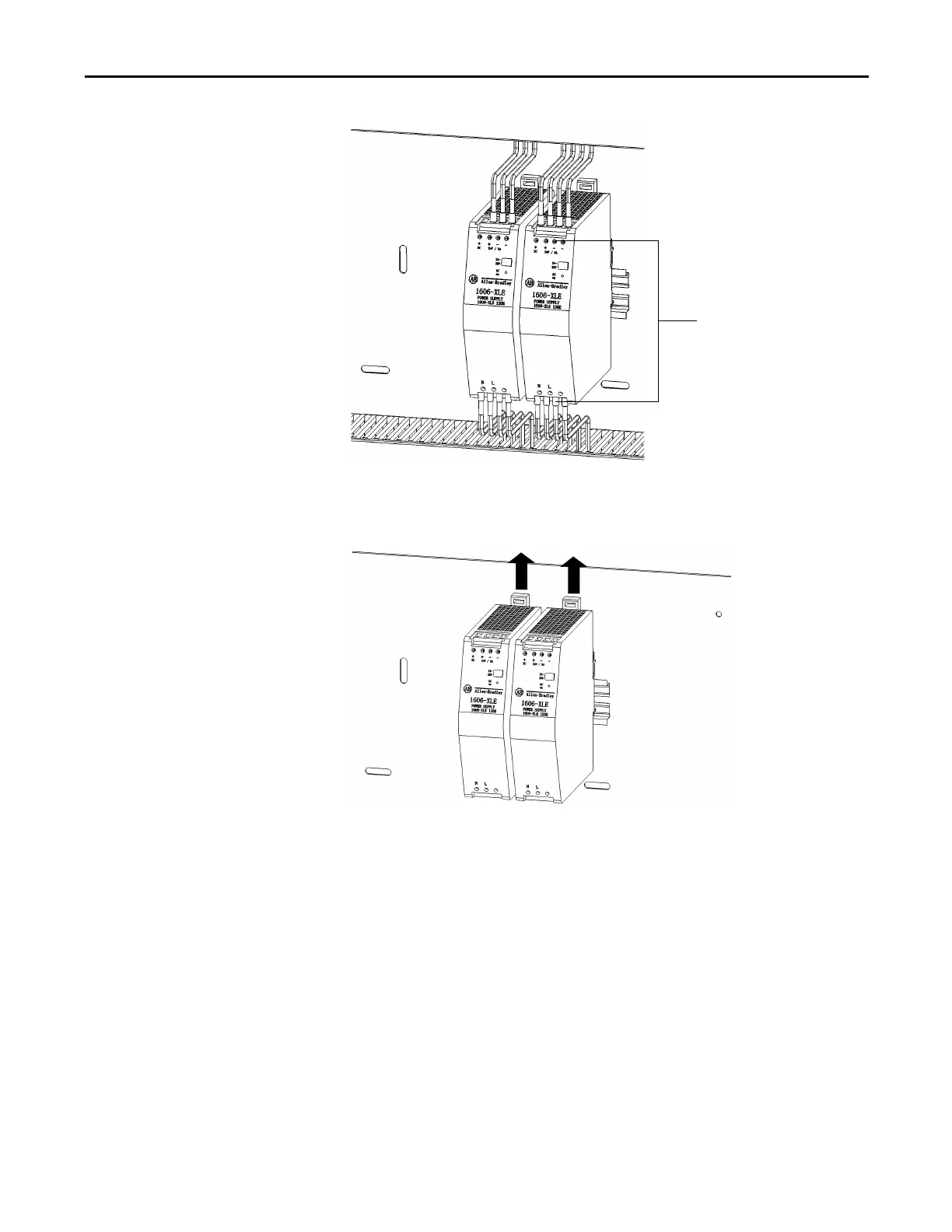

Figure 43 - Remove AC/DC Power Supply wires (PS3 Power Supply not shown for clarity)
3. Release the spring-loaded latches at the bottom of the power supply and
lift the control relay off the DIN rail.
Figure 44 - Release the latches on the Power Supplies (PS3 Power Supply not shown for clarity)
4. Install the new power supply in reverse order of removal.
Unscrew the
connecting wires on
the top and bottom
To Next Page
