Chapter 5 Preventative Maintenance and Component Replacement
PS3 Power Supply
1. Loosen, but do not remove, the screws on the top of the PS3 Power Supply.
2. Remove the wires.

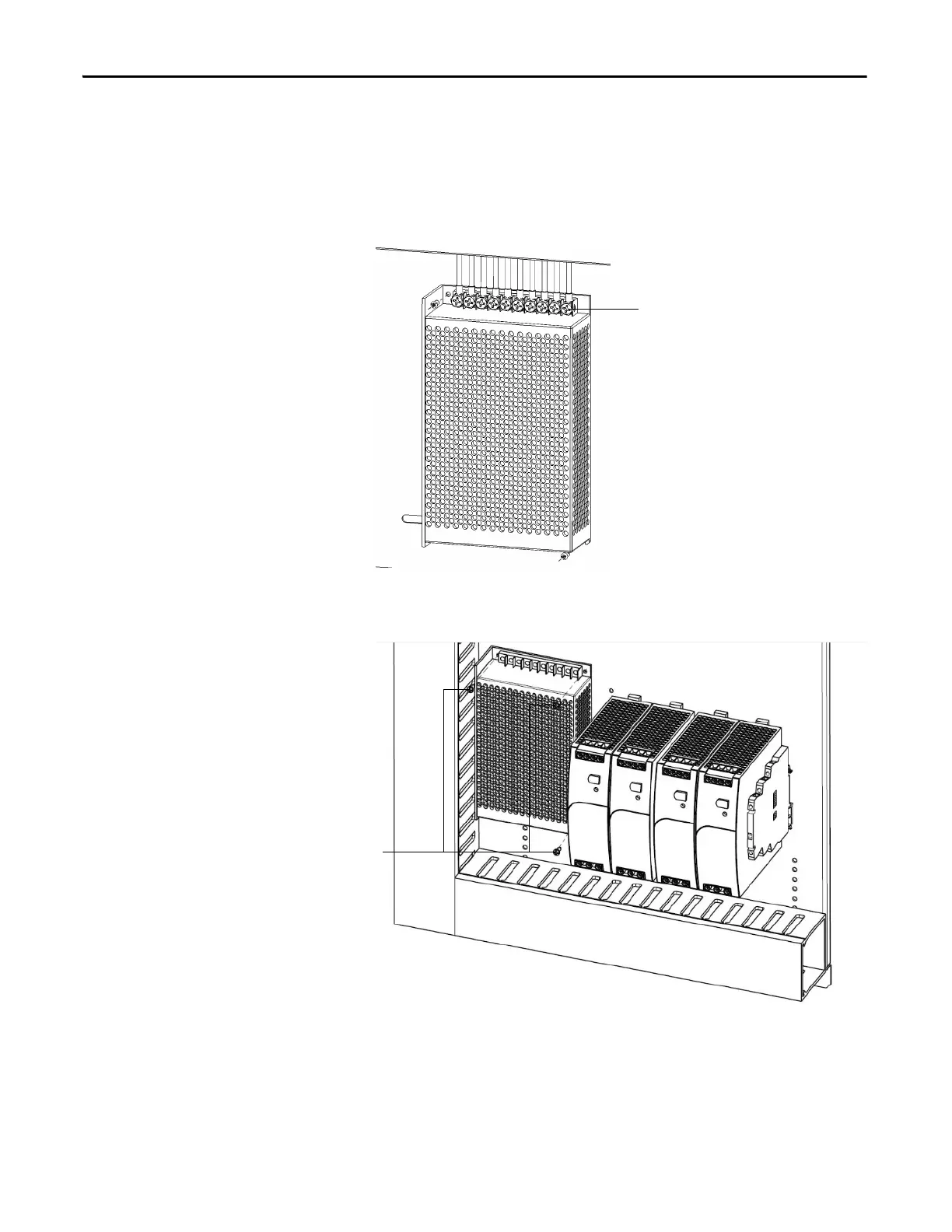

Figure 45 - Remove PS3 Power Supply wires (PS1 and PS2 Power Supply not shown for clarity)
3. Remove three M3 tapping screws to remove the unit.
Figure 46 - Remove AC/DC Power Supply
4. Install the new power supply in reverse order of removal.
Loosen screws and remove all wires
