Chapter 5 Preventative Maintenance and Component Replacement
Replace LV Control Circuit Breakers
1. Open the LV Control cabinet door.
2. Switch the circuit breaker to the off position.

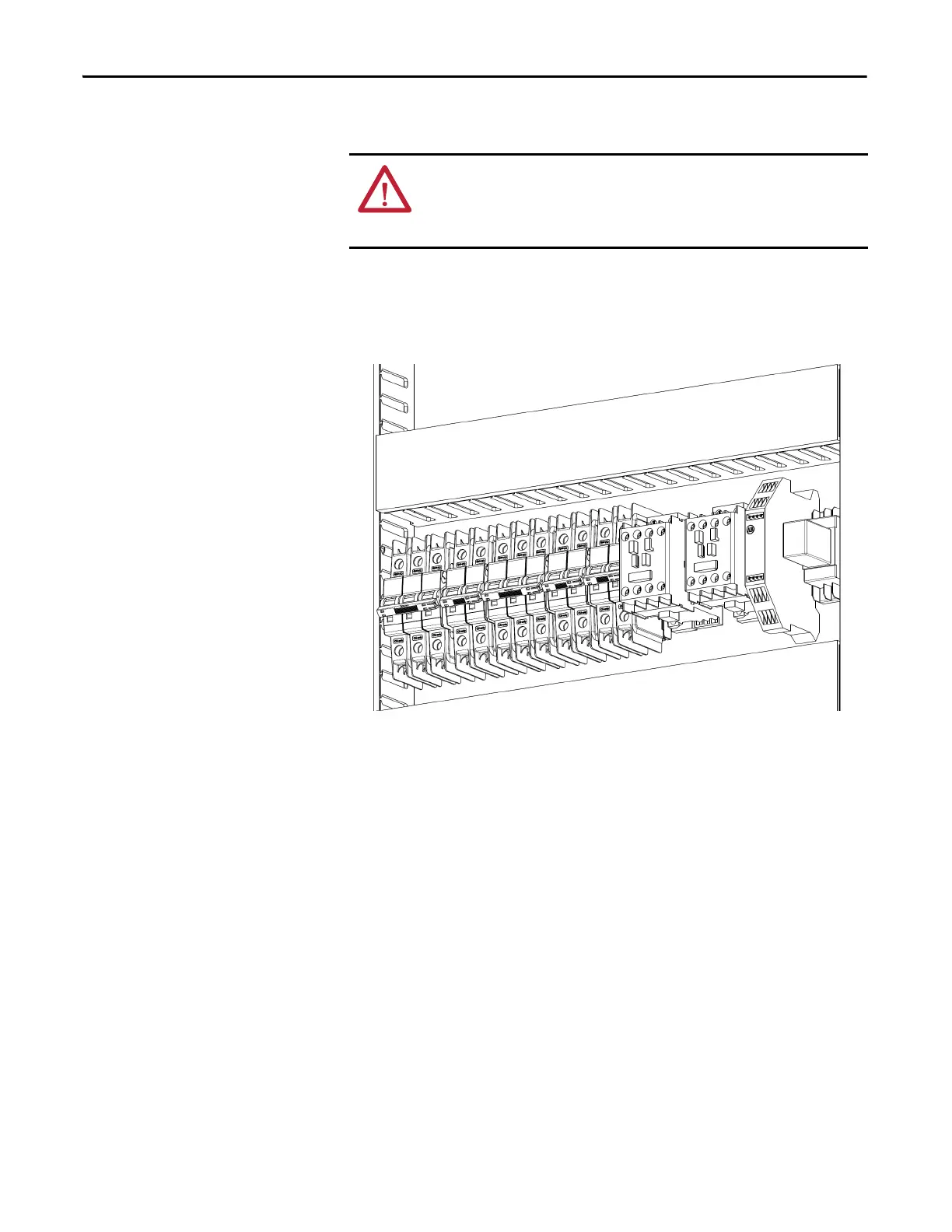

Figure 53 - Circuit Breaker Location in LV Control Cabinet
3. Loosen the top and bottom screws and remove the wires on the circuit
breaker.
ATTENTION: Always perform Power Lockout procedure before servicing
equipment. Verify with a hot stick or appropriate voltage measuring device that
all circuits are voltage free. Failure to do so may result in severe burns, injury, or
death.
