Disassembly/Assembly Diagrams and Spare Parts Appendix D

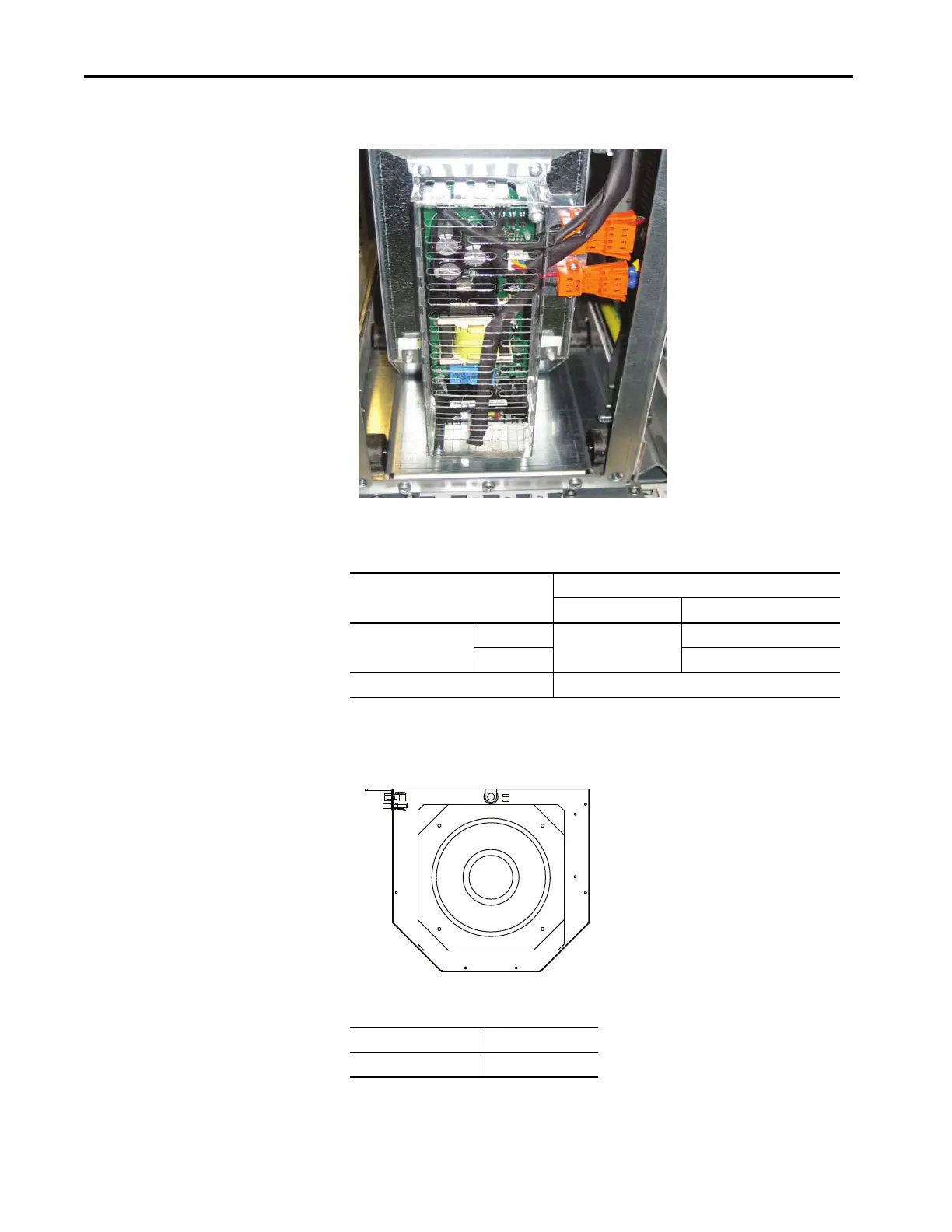

Figure 42 - LCL Filter Power Supply Assembly
Table 17 - LCL Filter Power Supply Assembly Part Numbers
Figure 43 - LCL Filter Fan Assembly
Table 18 - LCL Filter Fan Assembly Part Number
Part Name Cat. No.
Universal Kit Discontinued July 2014
(2)
(2) These discontinued kits are no longer available, but spares inventory is applicable.
LCL filter power supply 400/480V SK-Y1-DCPS2-F10
(1)
(1) This kit can be used for either voltage class.
SK-Y1-DCPS1-D460
600/690V SK-Y1-DCPS1-F325
LCL fan wire kit SK-Y1-HF1-DF
Part Name Part No.
Main fan, 48V DC SK-Y1-DCFAN1
