Allen-Bradley PowerFlex AFE User Manual

122 Rockwell Automation Publication 20Y-TG001C-EN-P - April 2017
Appendix D Disassembly/Assembly Diagrams and Spare Parts
LCL Filter Assembly (used in
IP20 and IP21 enclosures)

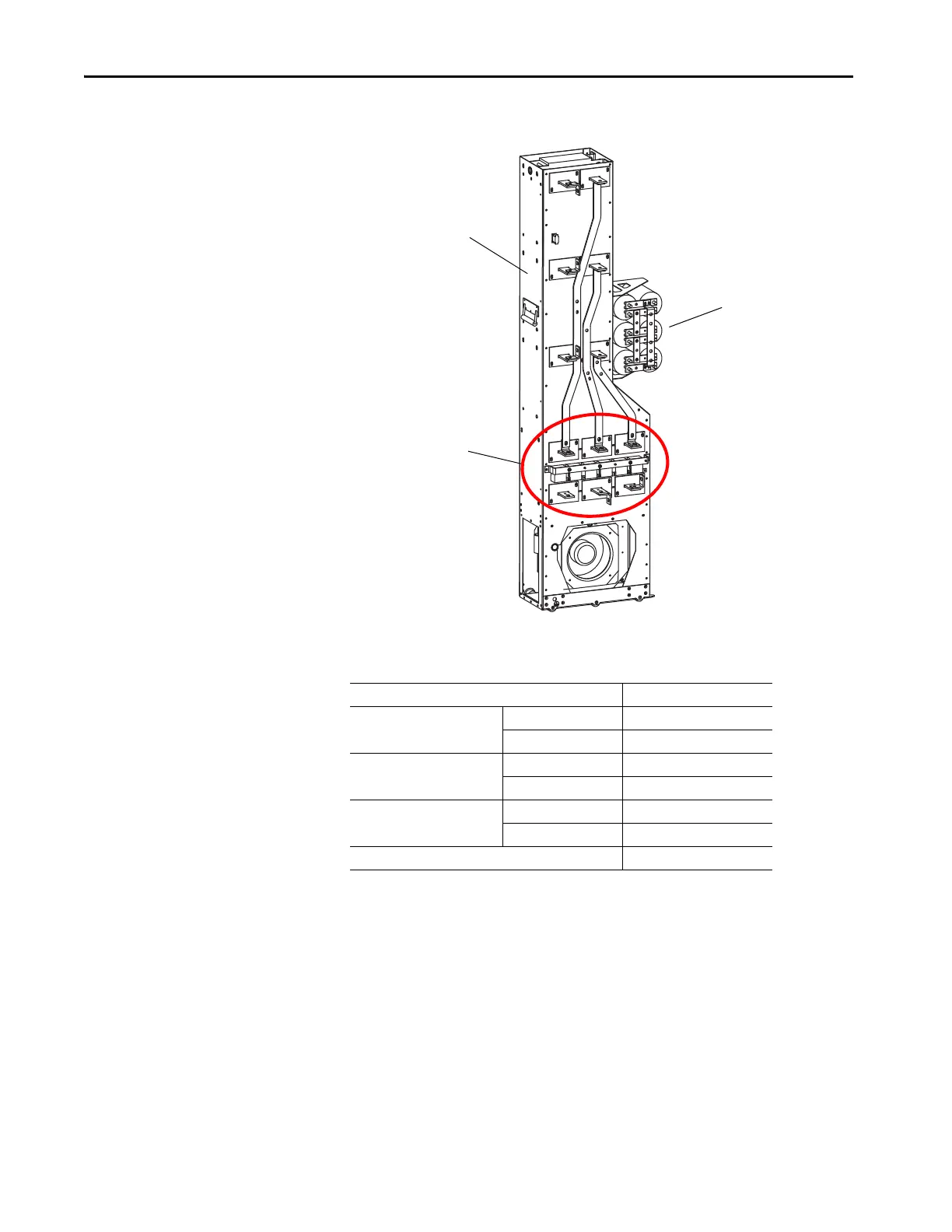

Figure 41 - LCL Filter Assembly
Table 16 - LCL Filter Assembly Part Numbers
Part Name Cat. No.
LCL filter assembly 400/480V SK-Y1-LCL1-D460
600/690V SK-Y1-LCL1-E325
LCL high-frequency capacitor
assembly
20 µF 400/480V SK-Y1-CAPHF2-DF
10 µF 600/690V SK-Y1-CAPHF1-DF
LCL capacitor assembly 120 µF 400/480V SK-Y1-CAPLCL1-D425
53 µF 600/690V SK-Y1-CAPLCL1-F325
LCL filter inverter fan fuse SK-Y1-F11-F10
LCL Capacitor
Assembly
LCL Filter
Assembly
LCL High Frequency
Capacitor Assembly
