94 Rockwell Automation Publication 20Y-TG001C-EN-P - April 2017

Appendix B Schematic Diagrams

Control Wiring Diagram for

Frame 10 in IP20 2500 MCC

Style Enclosure

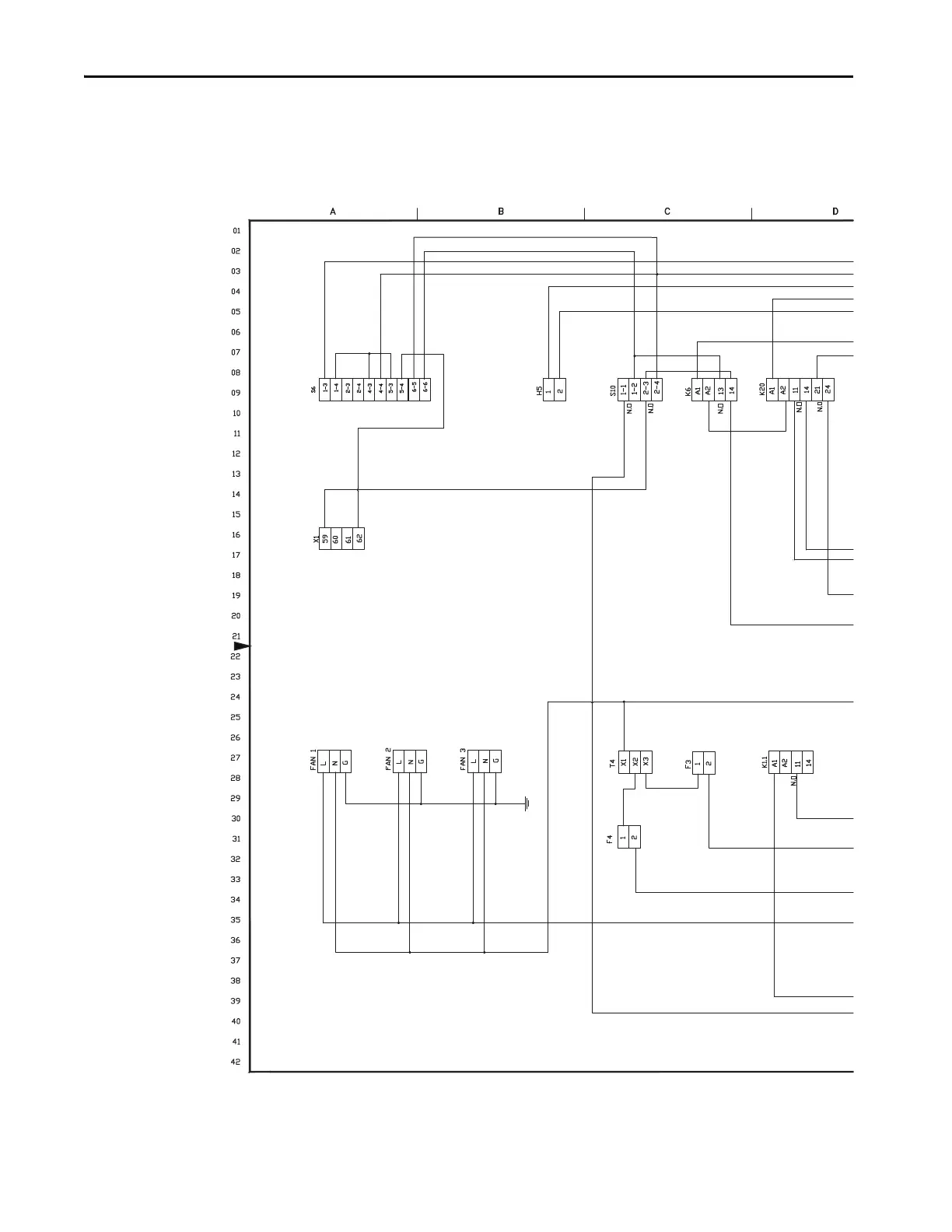

Figure 17 - Control Wiring Diagram for Frame 10 in IP20 2500 MCC Style Enclosure
