Rockwell Automation Publication 20Y-TG001C-EN-P - April 2017 43
AFE Power Structure Component Section Chapter 4

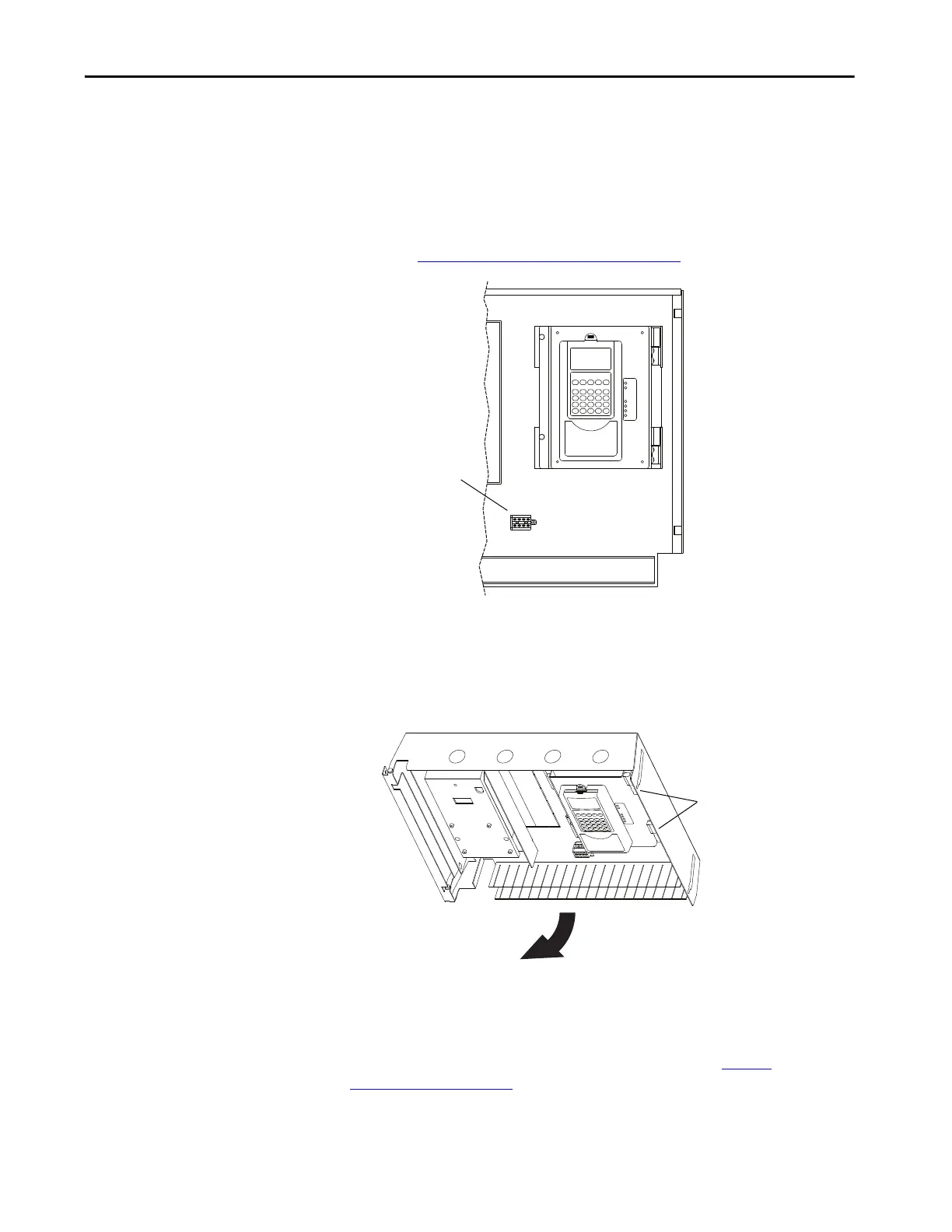

Remove the Control Frame (only for AFE in IP21 Rittal enclosure)
To remove the control frame for an AFE in an IP21 Rittal enclosure, follow
these steps.
1. Remove power from the AFE.
See Remove Power from the AFE
on page 37.
2. Loosen the T8 Torx-head screws, which secure the control frame to the
AFE enclosure.
3. Swing the control frame out and away from the power structure.
4. Lift the control frame from the hinges and remove it.
Replace the Control Frame
Replace the control frame in reverse order of removal. See To r qu e
Specifications on page 36.
Loosen T8
Torx-head
Screws
To Next Page
