Chapter 4 AFE Power Structure Component Section
Power Structure Access
Procedures
To remove and install components on the power structure, and to remove the
power module from the power structure, follow these instructions.
Remove AFE Protective Barriers
To remove AFE protective barriers, follow these steps.
1. Remove power from the AFE.
See Remove Power from the AFE
on page 37.
2. Remove the screws that secure the protective barriers to the AFE
enclosure.
3. Remove the protective barriers.
IMPORTANT To replace power modules, you must remove the power structure from the
AFE enclosure.
Remove
Screws
Remove
Screws

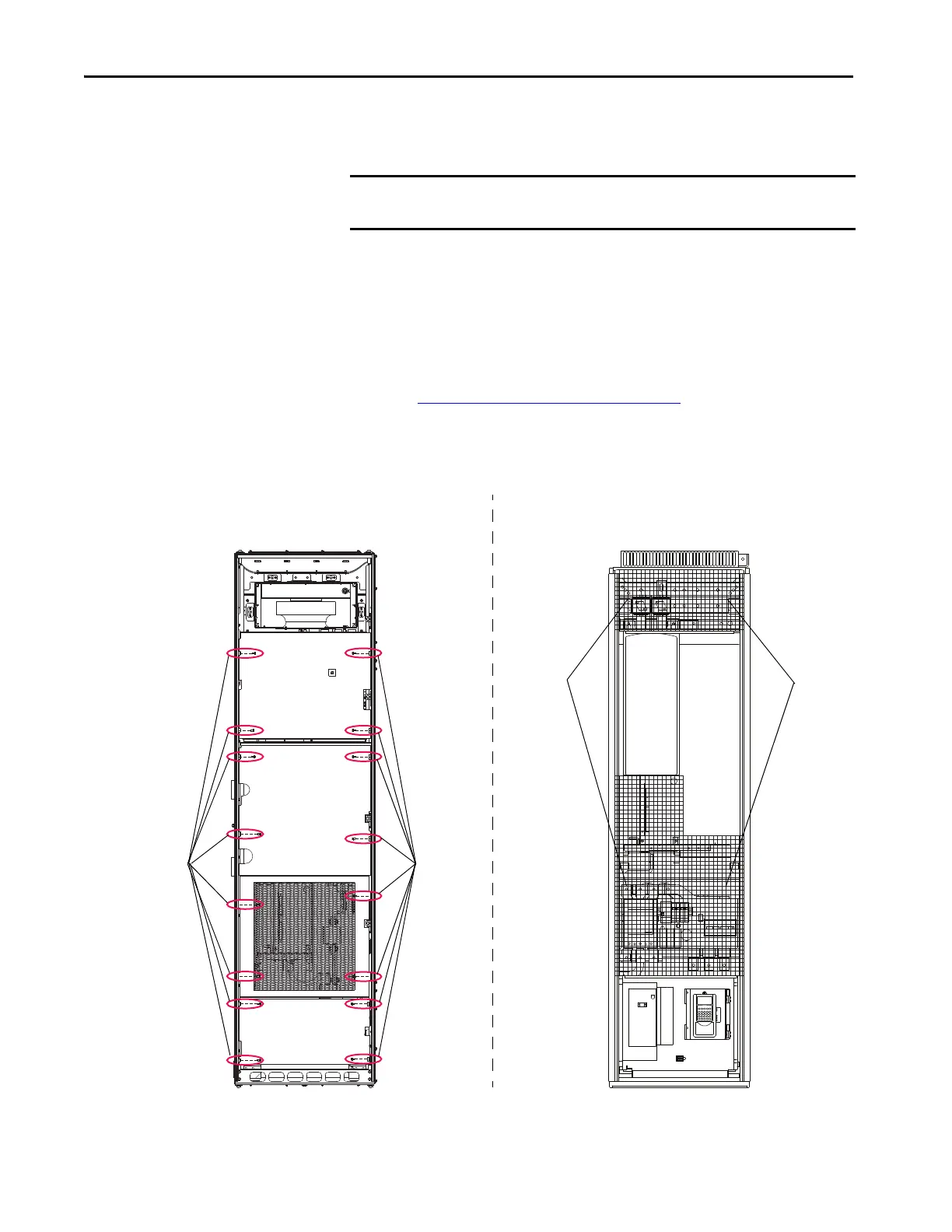

Remove Protective Barriers for AFE in IP21
Rittal Enclosure
Remove Protective Barriers for AFE in IP20
2500 MCC Style Enclosure
Remove
Screws
Remove
Screws
