AFE Power Structure Component Section Chapter 4
Install the AFE Protective Barriers
Install the protective barriers in reverse order of removal.
Remove the AFE Airflow Plate
To remove the power structure from the AFE, you must remove the airflow
plate.
To remove the AFE airflow plate, follow these steps.
1. Remove power from the AFE.
See Remove Power from the AFE
on page 37.
2. If present, remove the protective barriers.
See Remove AFE Protective Barriers
on page 44.
3. For an AFE in an IP20 2500 MCC Style enclosure, remove the four
M6 x16 screws that secure the airflow plate to the AFE.
For an AFE in an IP21 Rittal enclosure, remove the four T8 Torx-head
screws that secure the airflow plate to the AFE.
4. Slide the airflow plate from the AFE.
Install the AFE Airflow Plate
Install the airflow plate in reverse order of removal.
Remove
Screws
Remove
Screws

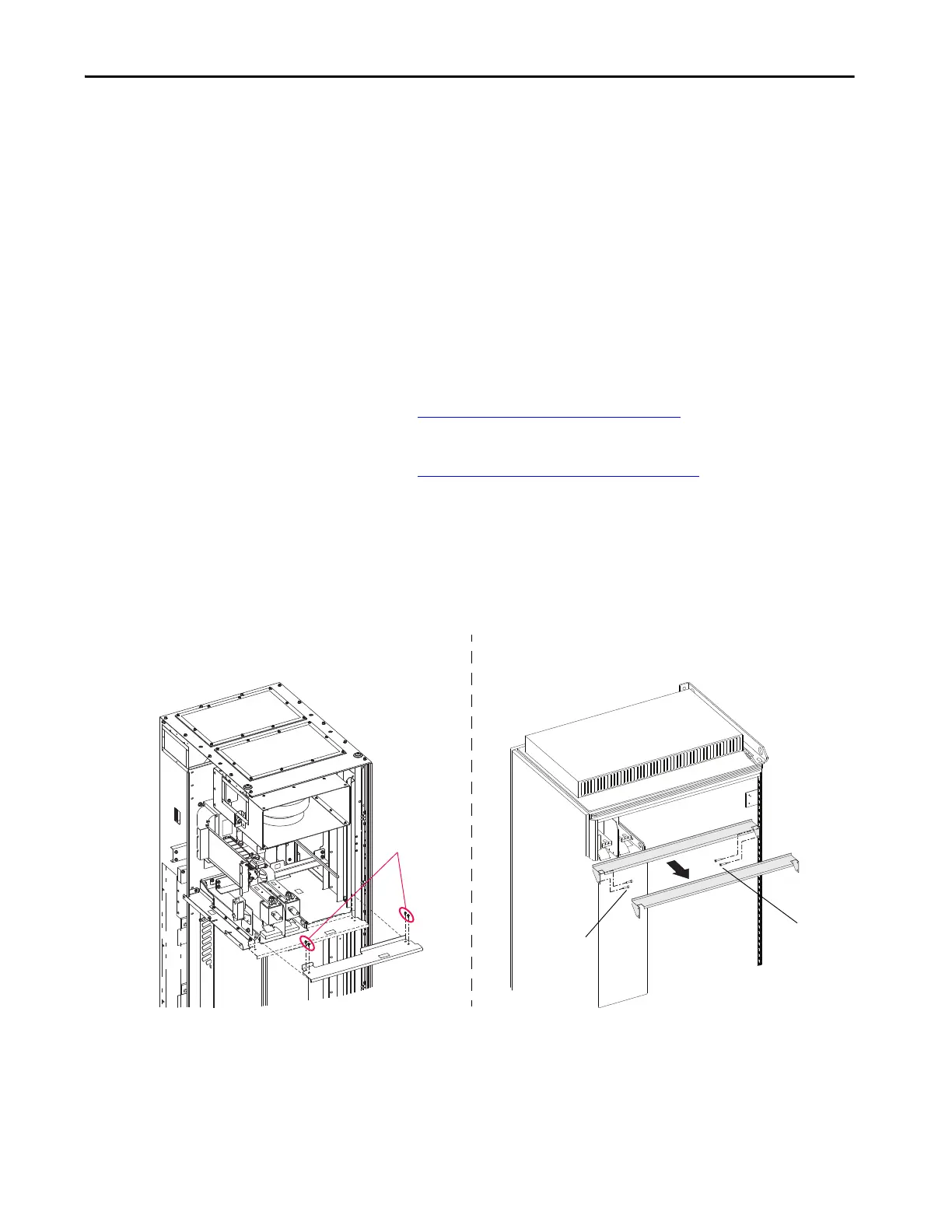

Remove Airflow Plate for AFE in IP21
Rittal Enclosure
Remove Airflow Plate for AFE in IP20
2500 MCC Style Enclosure
Remove
Screws
To Next Page
