Rockwell Automation Publication 20Y-TG001C-EN-P - April 2017 121
Disassembly/Assembly Diagrams and Spare Parts Appendix D

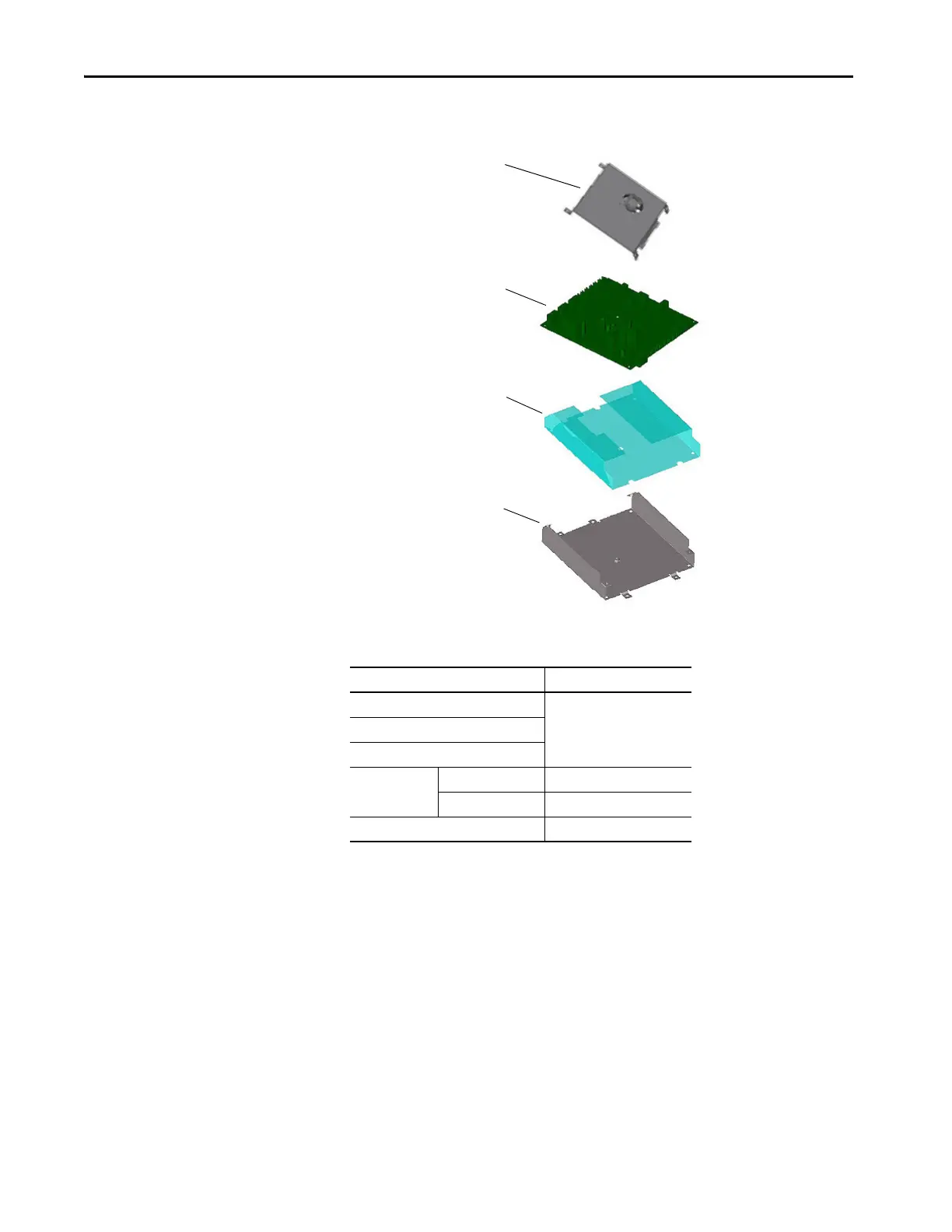

Figure 40 - AFE Power Structure ASIC Assembly
Table 15 - AFE Power Structure ASIC Assembly Part Numbers
Part Name Cat. No.
ASIC assembly bracket Included in 20-FR10850
ASIC assembly cover
ASIC assembly insulator
ASIC board
(1)
(1) The ASIC board is unprogrammed.
400/480V AFE SK-H1-ASICBD-D460
600/690V AFE SK-H1-ASICBD-E325
Fiber-optic cable set 20-PP09017
ASIC Board
ASIC Assembly Cover
ASIC Assembly Bracket
ASIC Insulator
To Next Page
