Rockwell Automation Publication 20Y-TG001C-EN-P - April 2017 99

Schematic Diagrams Appendix B

ABC DE FGH

8151

9120

9140

8170

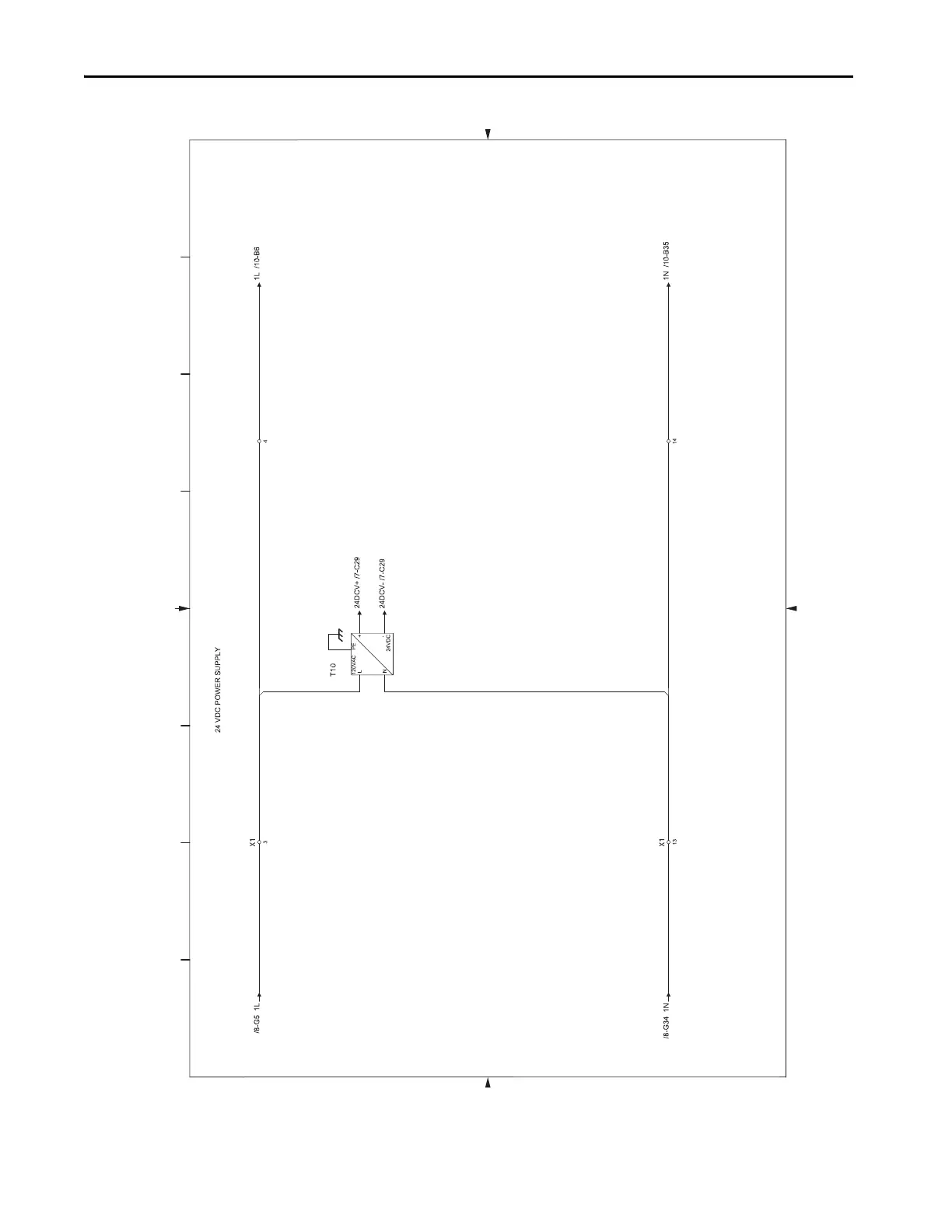

Figure 22 - Frame 10 in IP20 2500 MCC Style Enclosure – Sheet 9 (400/480V and 600/690V)
