Rockwell Automation Publication 1734-UM020B-EN-E - August 2019 13
Chapter
2
Install the POINT I/O 4 Channel IO-Link
Master Module
About This Chapter
Read this chapter for installation and wiring information including how to
complete the following:
Install the Mounting Base
To install the mounting base on the DIN rail, proceed as follows:
1. Position the mounting base vertically above the installed units (adapter,
power supply, or existing module).
2. Slide the mounting base down allowing the interlocking side pieces to
engage the adjacent module or adapter.
Topic Page
Install the Mounting Base 13
Install the Module 14
Install the Removable Terminal Block 15
Remove a Mounting Base 16
Wire the Modules 16

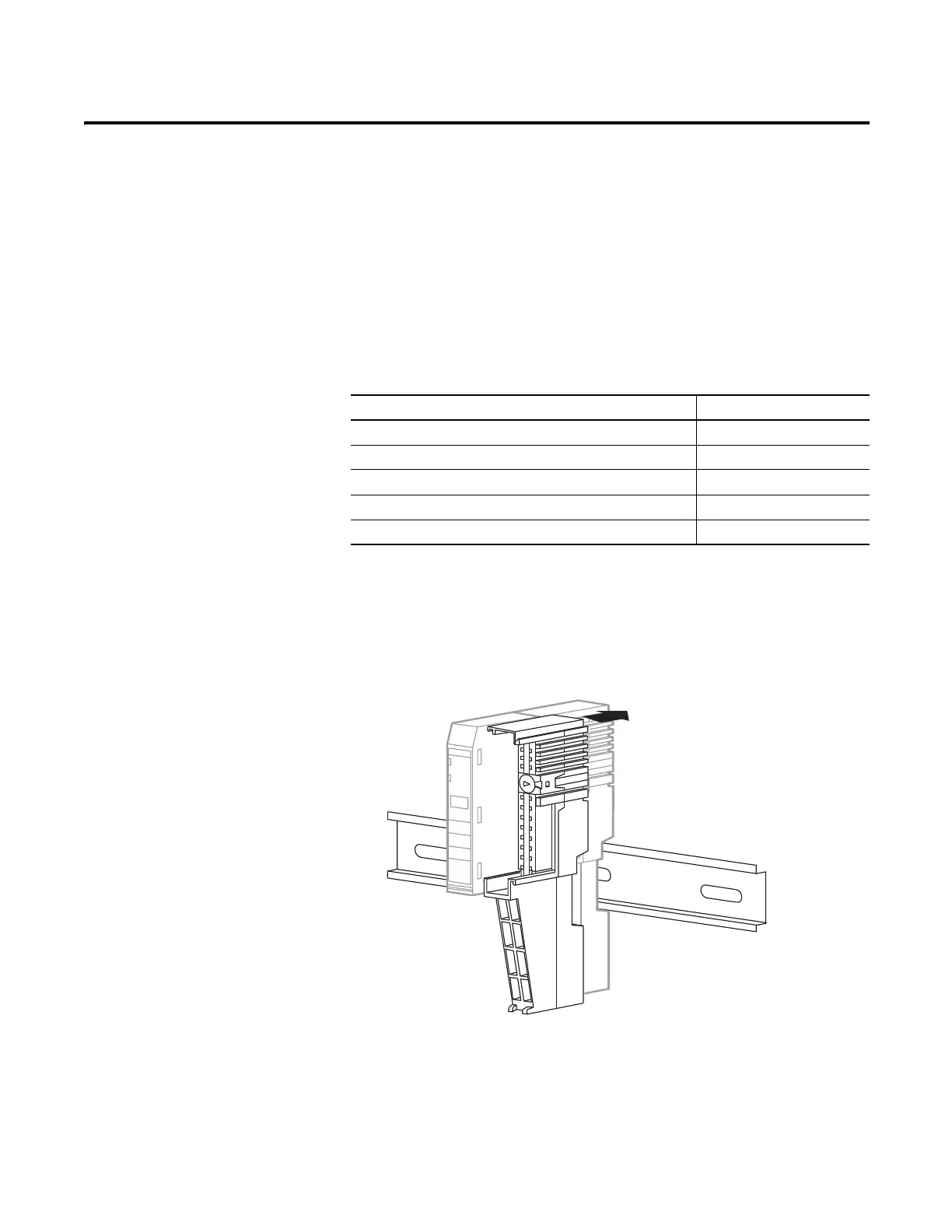

Slide the mounting base until the
interlocking side pieces engage the
adjacent module or adapter.
46014
