Rockwell Automation Publication 1734-UM020B-EN-E - August 2019 23
Add the POINT I/O 4 Channel IO-Link Master Module on an EtherNet/IP Network Chapter 3
6. Follow the instructions on the next dialog boxes to complete the
installation and configuration.

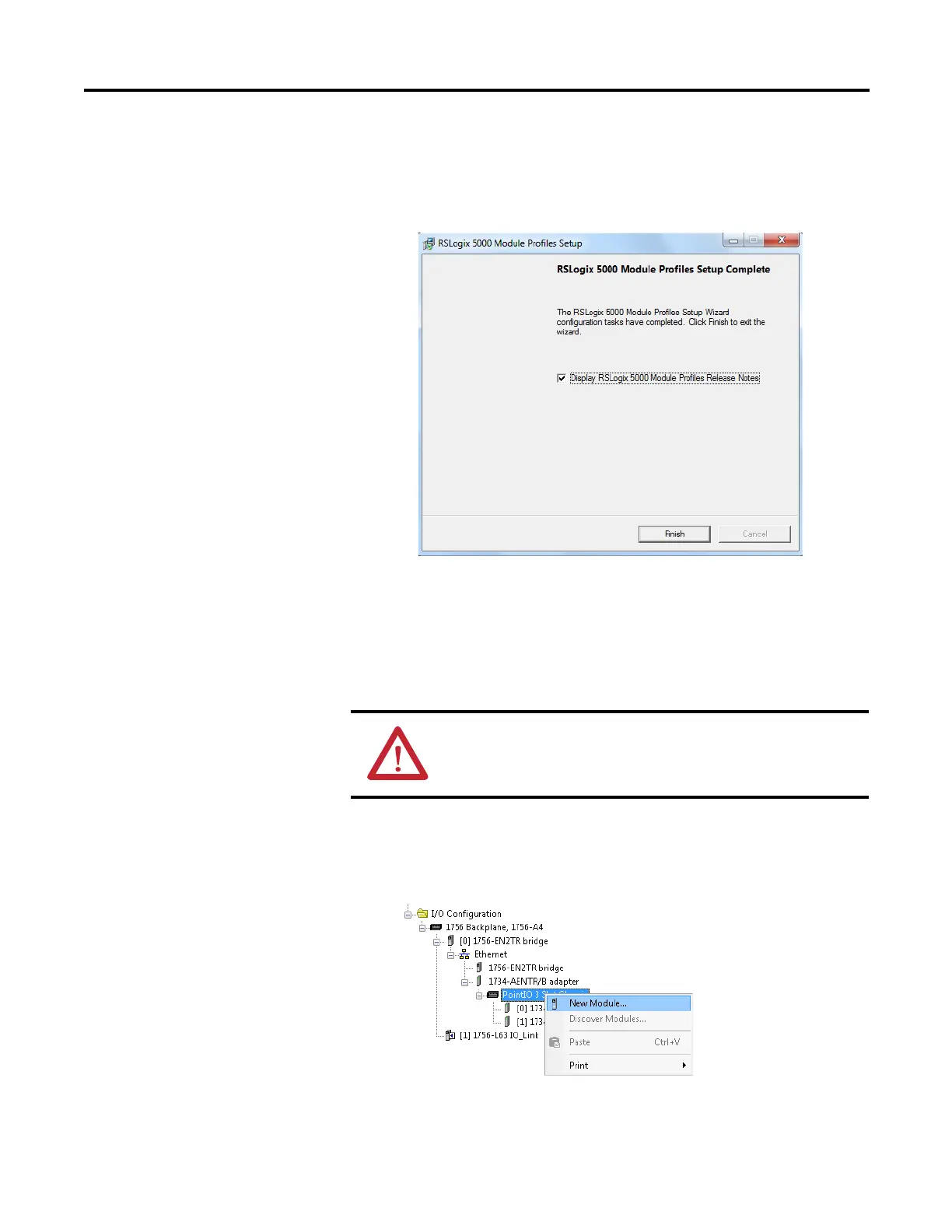

When installation is complete the following dialog box appears. Click
Finish.
Add a POINT I/O 4 Channel
IO-Link Master Module to
Studio 5000
To add the POINT I/O 4 Channel IO-Link Master module to Studio 5000, do
the following.
1. In the I/O Configuration tree, find the adapter.
In this example, we use the 1734-AENTR/B adapter with the
1734-4IOL module.
2. Right-click the POINT I/O Chassis and select New Module.
ATTENTION: The 1734-4IOL module requires a 1734-AENT or
1734-AENTR, Series B adapter.
