Rockwell Automation Publication 1734-UM020B-EN-E - August 2019 15
Install the POINT I/O 4 Channel IO-Link Master Module Chapter 2
4. Press to secure. The module locks into place.
Install the Removable
Terminal Block
A removable terminal block (RTB) is supplied with your wiring base assembly. To
remove, pull up on the RTB handle. This allows the mounting base to be
removed and replaced as necessary without removing any of the wiring. To
reinsert the removable terminal block, proceed as follows:
1. Insert the end opposite the handle into the base unit. This end has a curved
section that engages with the wiring base.
2. Rotate the terminal block into the wiring base until it locks itself in place.
3. If an I/O module is installed, snap the RTB handle into place on
the module.
24VDC
Source
Output
Module
Status
Network
Status
1734
OB4E
NODE:
0
1
2
3
24V DC
SIO
IO
LINK
Module
Status
Network
Status
1734-4IOL
0
0
1
1
2
2
3
3
NODE:
44013
24V DC
SIO
IO
LINK
Module
Status
Network
Status
1734-4IOL
0
0
1
1
2
2
3
3
NODE:

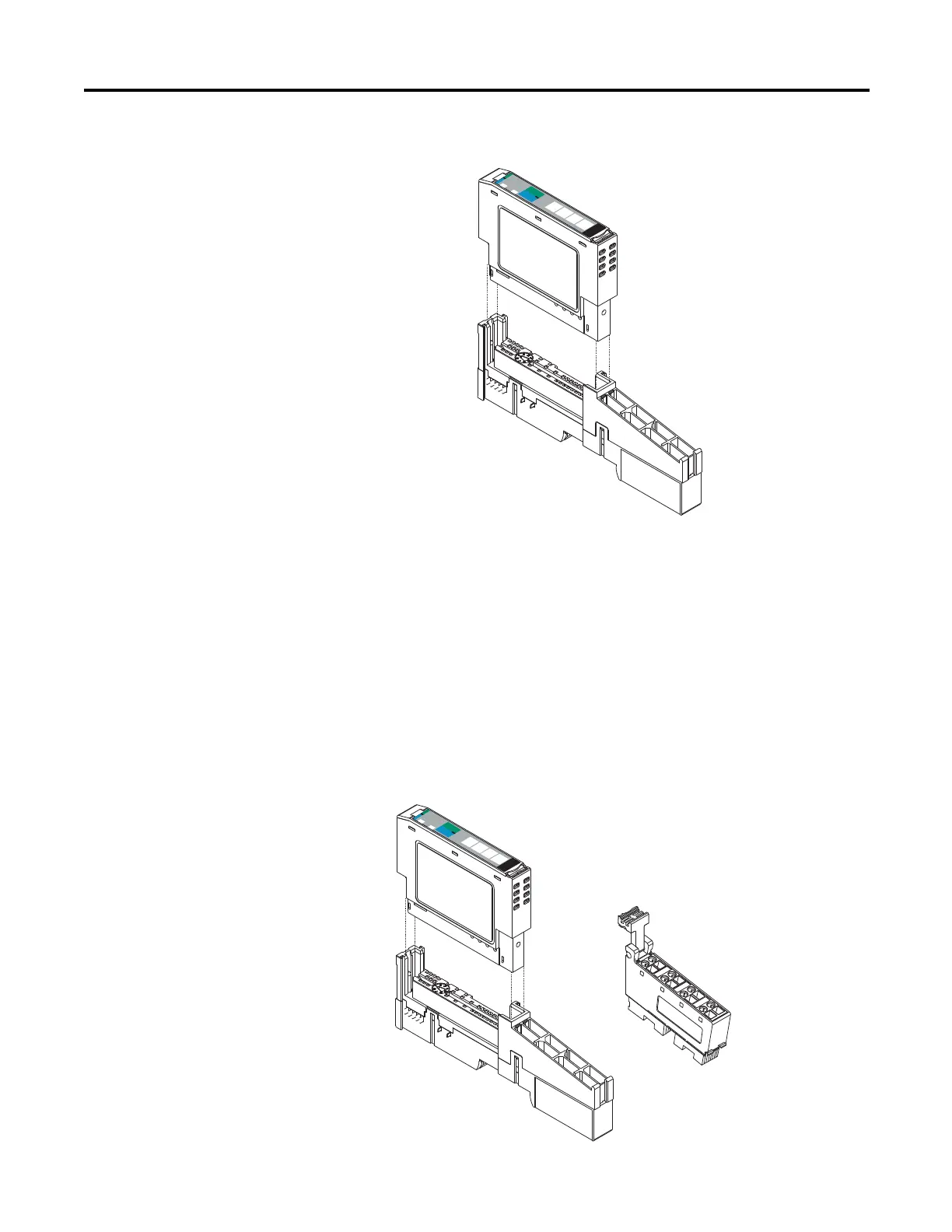

Insert the module straight down into
the mounting base.
Hook the RTB end into
the mounting base end
and rotate until it locks
into place.
44012
