16 Rockwell Automation Publication 1734-UM020B-EN-E - August 2019
Chapter 2 Install the POINT I/O 4 Channel IO-Link Master Module
Remove a Mounting Base
To remove a mounting base, you must remove any installed module and the
module installed in the base to the right. Remove the removable terminal block, if
wired.
1. Unlatch the RTB handle on the I/O module.
2. Pull on the RTB handle to remove the removable terminal block.
3. Press on the module lock on the top of the module.
4. Pull on the I/O module to remove from the base.
5. Repeat steps 1, 2, 3 and 4 for the module to the right.
6. Use a small bladed screwdriver to rotate the orange base locking screw to a
vertical position. This releases the locking mechanism.
7. Lift straight up to remove.
Wire the Modules
To wire the module, refer to the diagrams and tables.

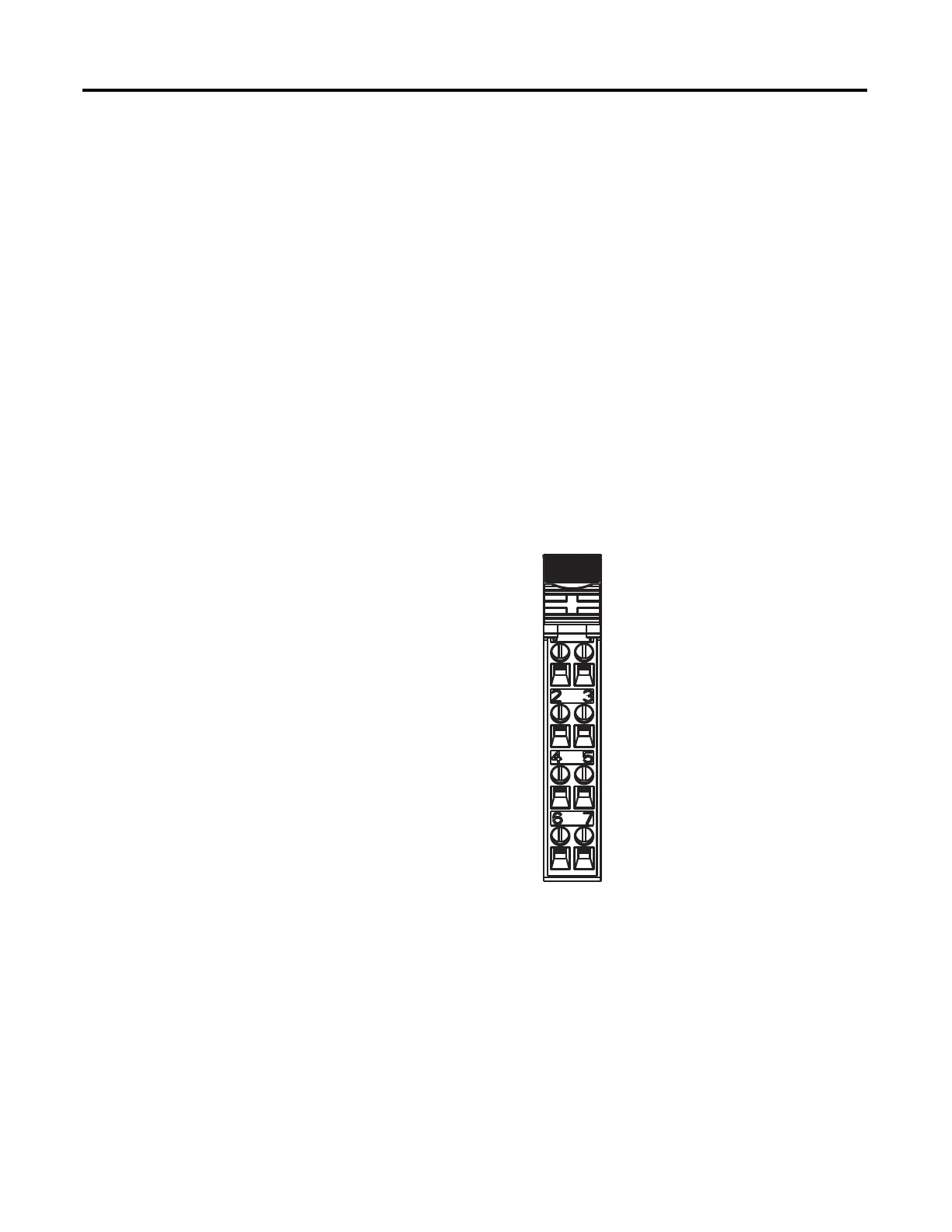

POINT I/O 4-Channel IO-Link Master Module – 1734-4IOL
1734-4IOL
Channel 0
C
V
Channel 1
Channel 3
Channel 2
C
V
