Configure the POINT I/O 4 Channel IO-Link Master as IO-Link Master Using the Studio 5000 Add-on Profile Chapter 4
– In the Add-on Profile, you can configure only the Vendor ID, Device
ID, Input and Output lengths, and Electronic keying information.
– General device information found in the Common tab for IODD Basic
and IODD Advanced integrated IO-Link devices are not shown.
– No user interface is provided for device configuration parameters
(read-write, write-only, and read-only parameters). Message
instructions to the IO-Link Device Parameter Object must be used to
read and change device parameters.
– Correlation function and Automatic Device Configuration are not
supported.
Configure Channel Mode
The POINT I/O 4 Channel IO-Link Master Module has four channels that can
be individually configured as standard digital input, standard digital output,
IO-Link, fallback, or disabled.
The channel mode is configured in the General tab of the Add-on Profile.

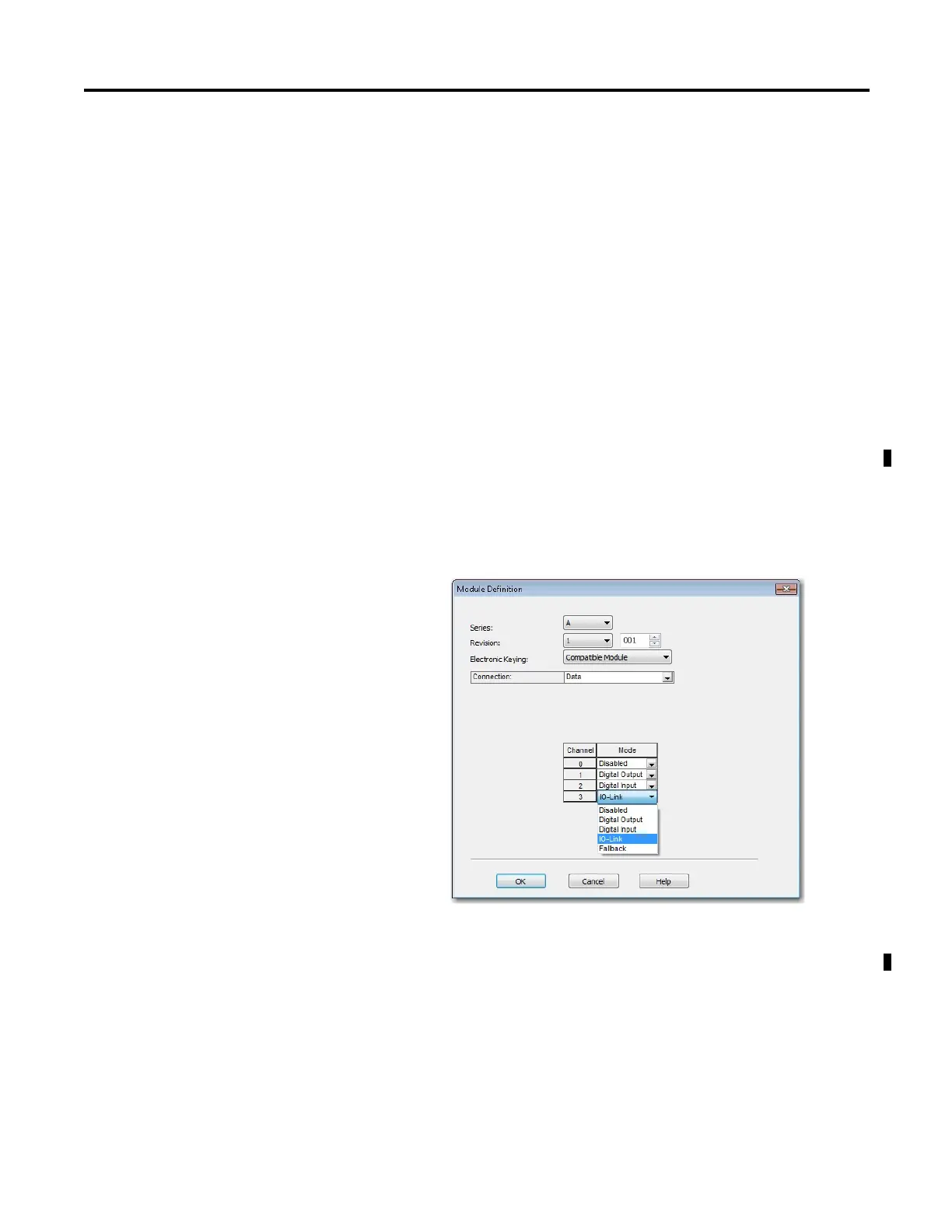

1. From the General tab, in the Module Definition section, click the Change
button. The following dialog box appears.
Note that Electronic Keying on this dialog is for the IO-Link Master
module and not for the IO-Link devices that are connected to the IO-Link
Master module. The default mode for the Channel is IO-Link.
2. For each channel, select the mode from the drop-down menu.
3. Click OK.
A pop-up dialog box displays.
4. Click Yes.
5. Click Apply to save the changes.
6. Click OK.
