52 Rockwell Automation Publication 1734-UM020B-EN-E - August 2019
Chapter 5 Configure the POINT I/O 4 Channel IO-Link Master Module as Standard Digital Input or Output Using the Studio 5000 Add-on Profile
Configure the Module as
Standard Digital Output
Using the Fault/Program
Action Tab

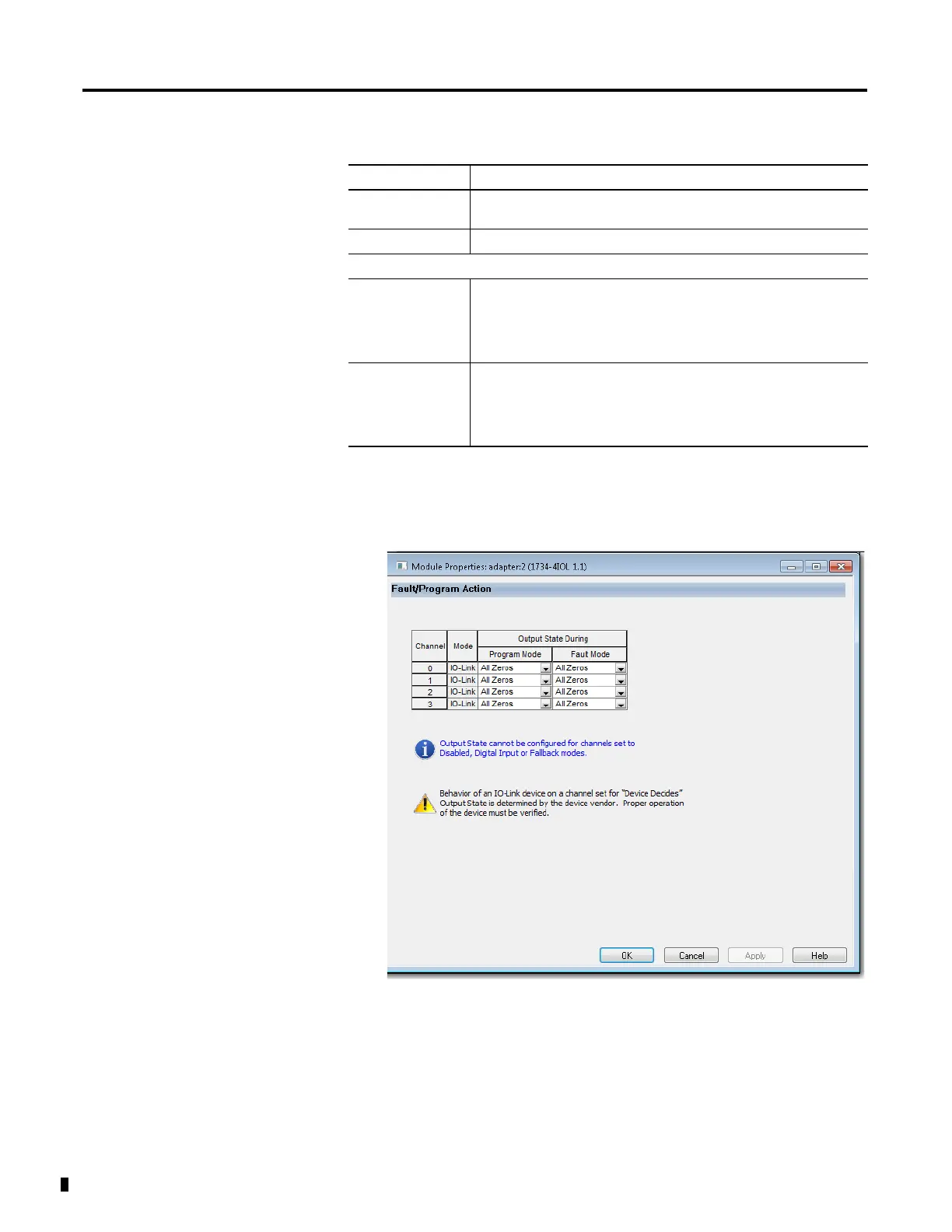

The following diagram shows the Fault/Program tab of a POINT I/O 4 Channel
IO-Link Master module in Studio 5000 using the Add-on Profile.
Each channel of your POINT I/O 4 Channel IO-Link Master module that is set
to standard digital output or IO-Link mode can be configured with individual
output states.
The following table describes each parameter on the Fault/Program tab.
Parameters on the Configuration Tab
Parameter Description
Channel Displays channels that are used to set the channel’s configuration
parameters.
Mode Displays channel mode for each channel.
Input Filter Time (ms)
Off->On This is the OFF to ON filter constant for all inputs on the module. A high
signal must be present for this amount of time before the module will report
an ON.
The value must be entered in milliseconds (ms). The default value is 0 ms.
The minimum value is 0 and the maximum is 65 ms.
On->Off This is the ON to OFF filter constant for all inputs on the module. A low
signal must be present for this amount of time before the module will report
an OFF.
The value must be entered in milliseconds (ms). The default value is 0 ms.
The minimum value is 0 and the maximum is 65 ms.
