Allen-Bradley Rockwell Automation 1734-AENT User Manual

Publication 1734-UM011D-EN-P - May 2011
140 Quick Start
Add the AB_ETHIP-1 (EtherNet/IP) Driver
1. From the Communications menu, choose Configure Drivers.

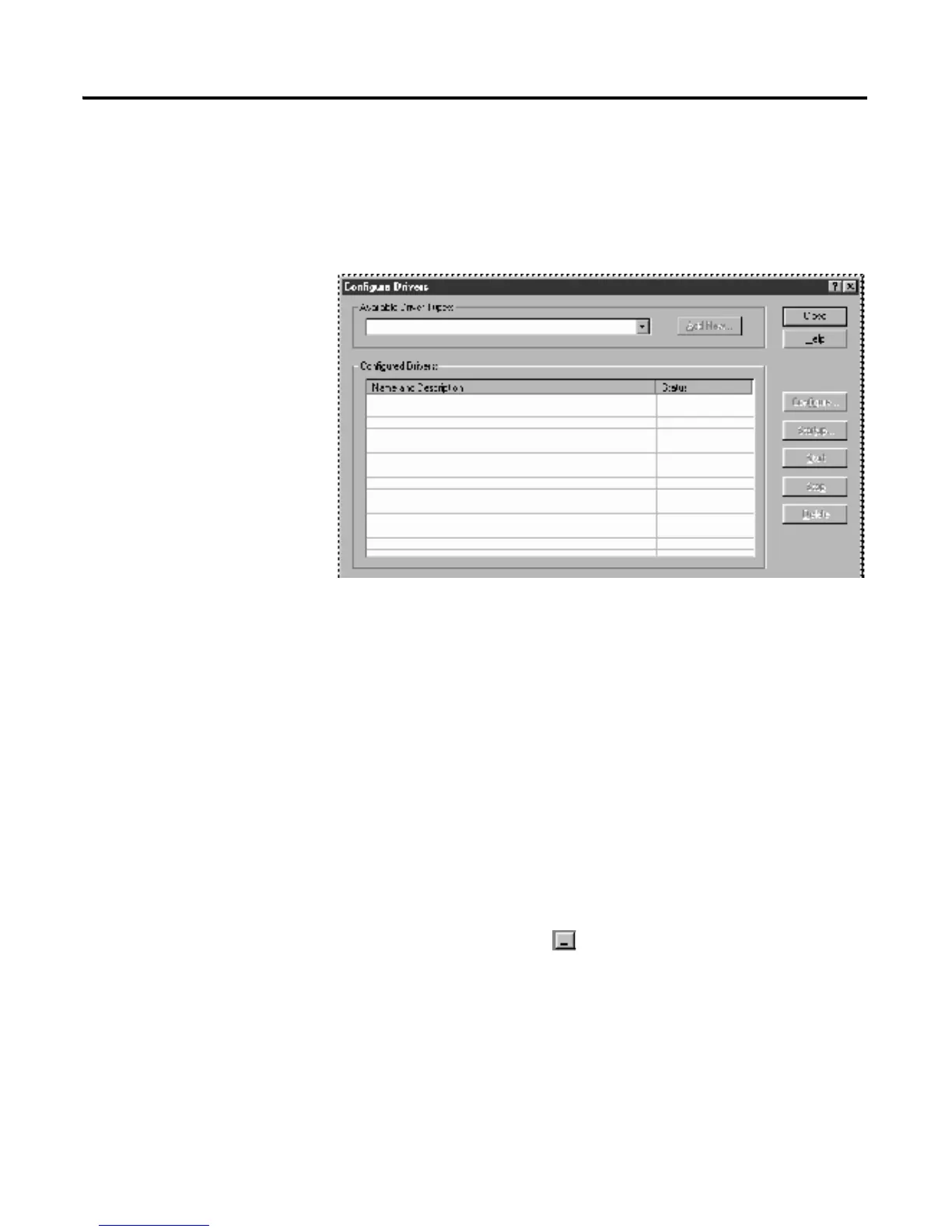

The Configure Drivers dialog appears.
2. From the Available Driver Types pull-down menu, choose EtherNet/IP
Driver.
3. Click the Add New button.
4. Click OK to accept the default name (AB_ETHIP-1).
Be sure that the radio button for Browse Local Subnet is enabled.
5. Click OK.
6. Verify that the driver you just configured is running, and click the Close
button to exit the Configure Drivers dialog.
7. Click the X in the upper right corner of the RSWho dialog to stop
RSWho.
8. Click the minimize icon in the upper right corner of the RSLinx
dialog to minimize RSLinx software.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
