Publication 1734-UM011D-EN-P - May 2011
60 Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software

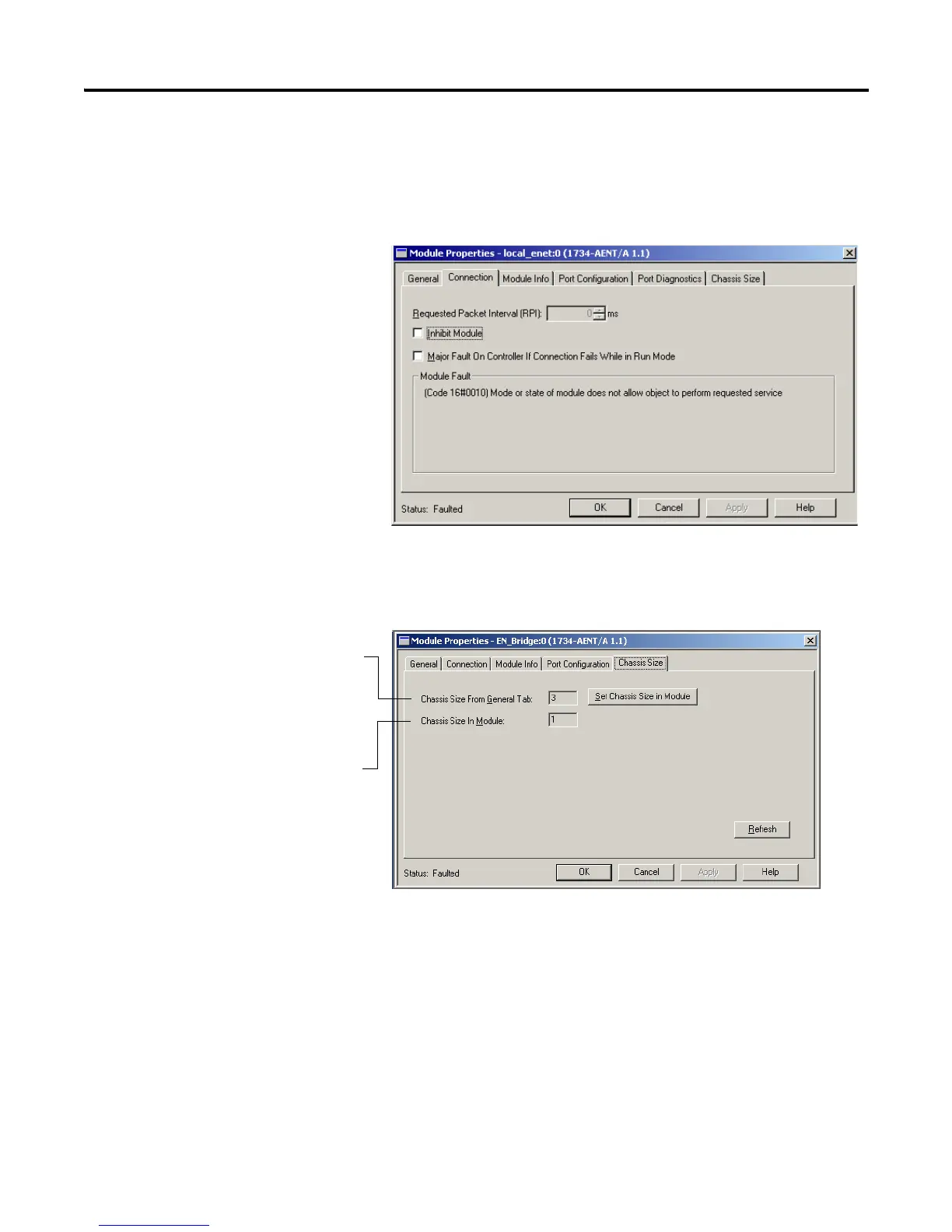

3. Select Properties.
4. Click the Connection tab.
You see the Module Fault error code.
5. Click the Chassis Size tab.
6. Click Set Chassis Size in Module.
Value from
RSLogix 5000
software
Value stored
in 1734-AENT
adapter
