Allen-Bradley Rockwell Automation 1734-AENT User Manual

Publication 1734-UM011D-EN-P - May 2011
Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software 61

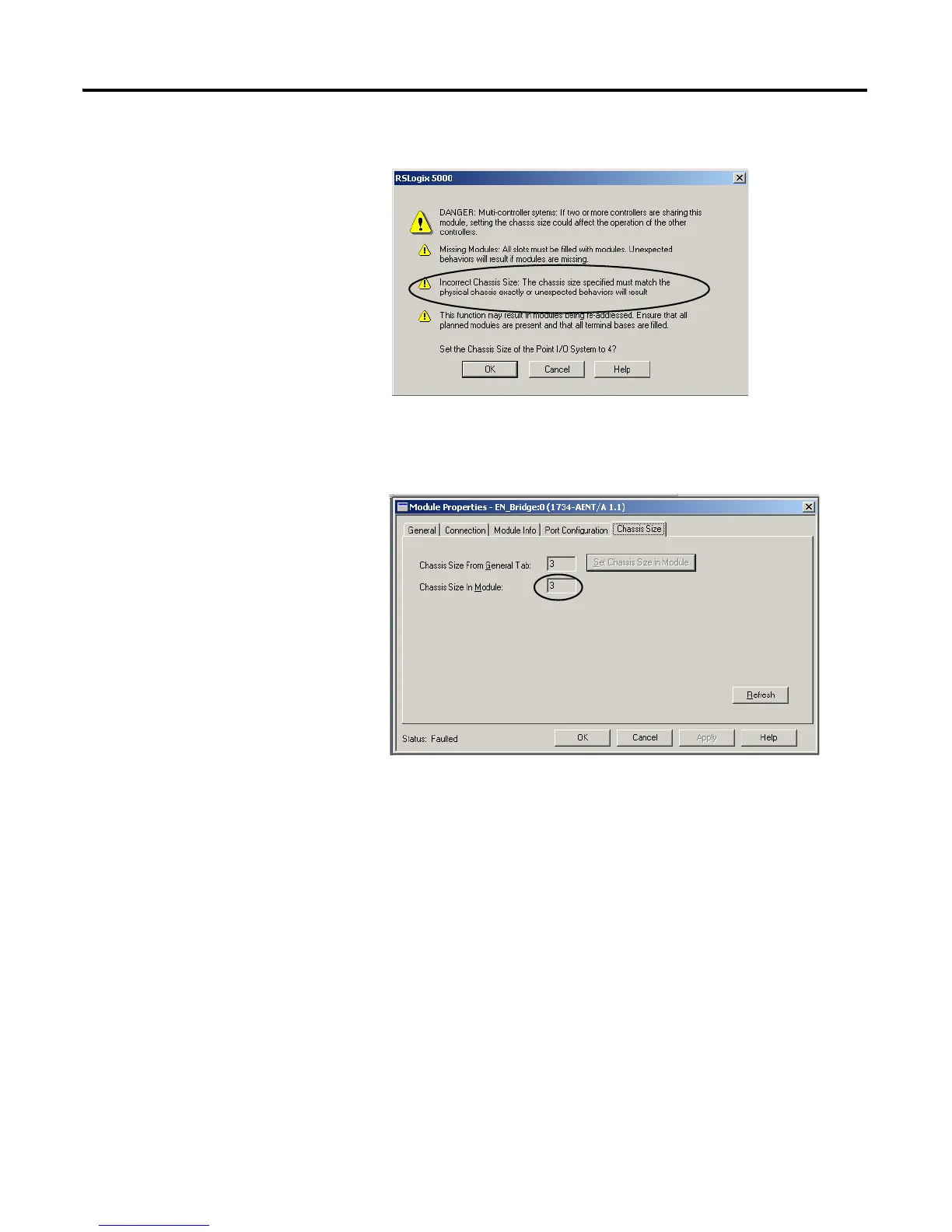

7. Read and acknowledge the warning dialog.
8. Click OK to continue.
9. Notice the chassis size in the module is modified to 3.
10. Click OK.
At this point, your POINTBus status LED should be solid green. All
the yellow triangles in your I/O configuration tree should be gone.
11. Click OK to close the dialog.
12. Click File
→ Save to save the project.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
