DE1-SoC User Manual
15
www.terasic.com
March 14, 2014

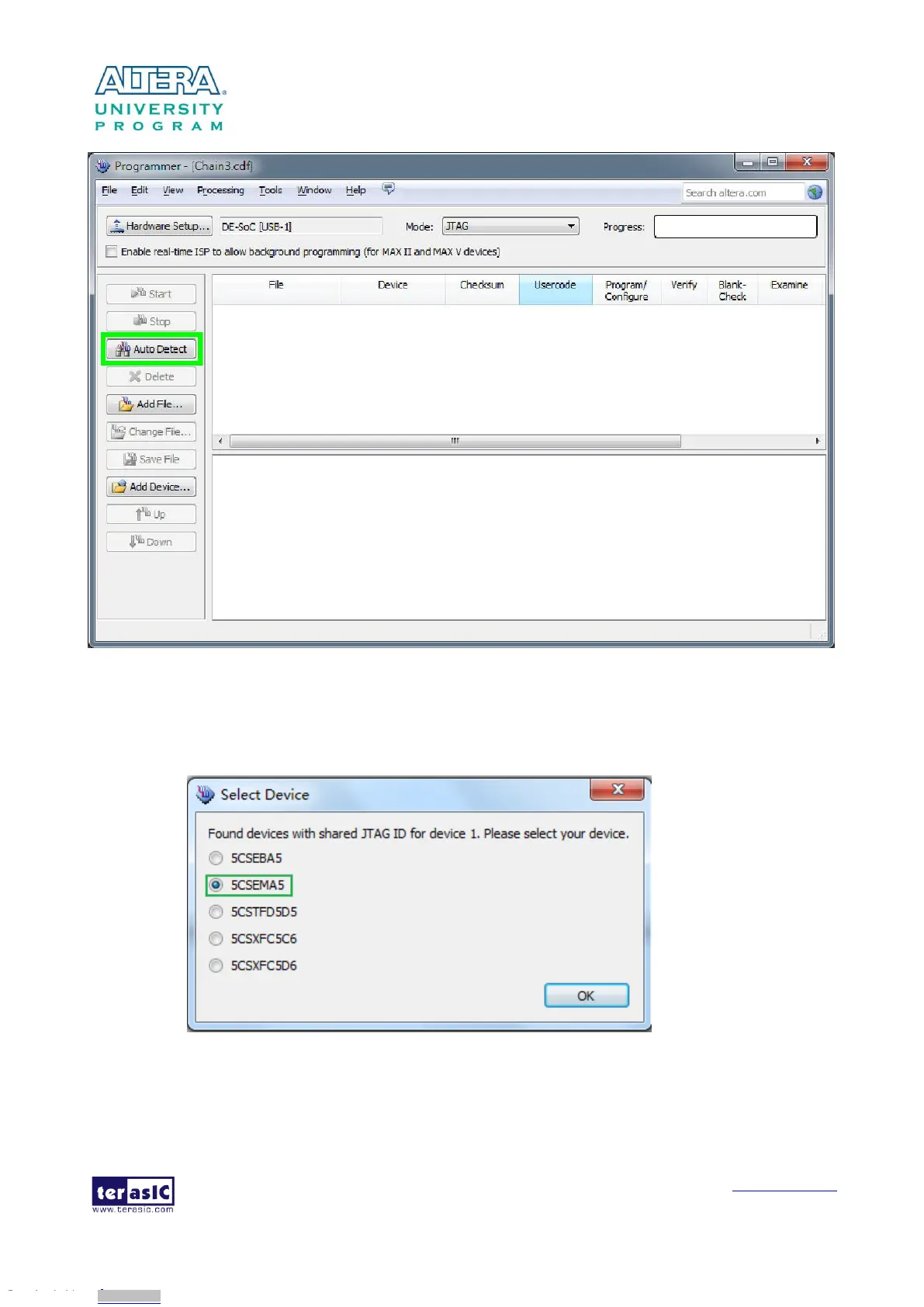

Figure 3-3 Detect FPGA device in JTAG mode
2. Select detected device associated with the board, as circled in Figure 3-4.
Figure 3-4 Select 5CSEMA5 device
3. Both FPGA and HPS are detected, as shown in Figure 3-5.
