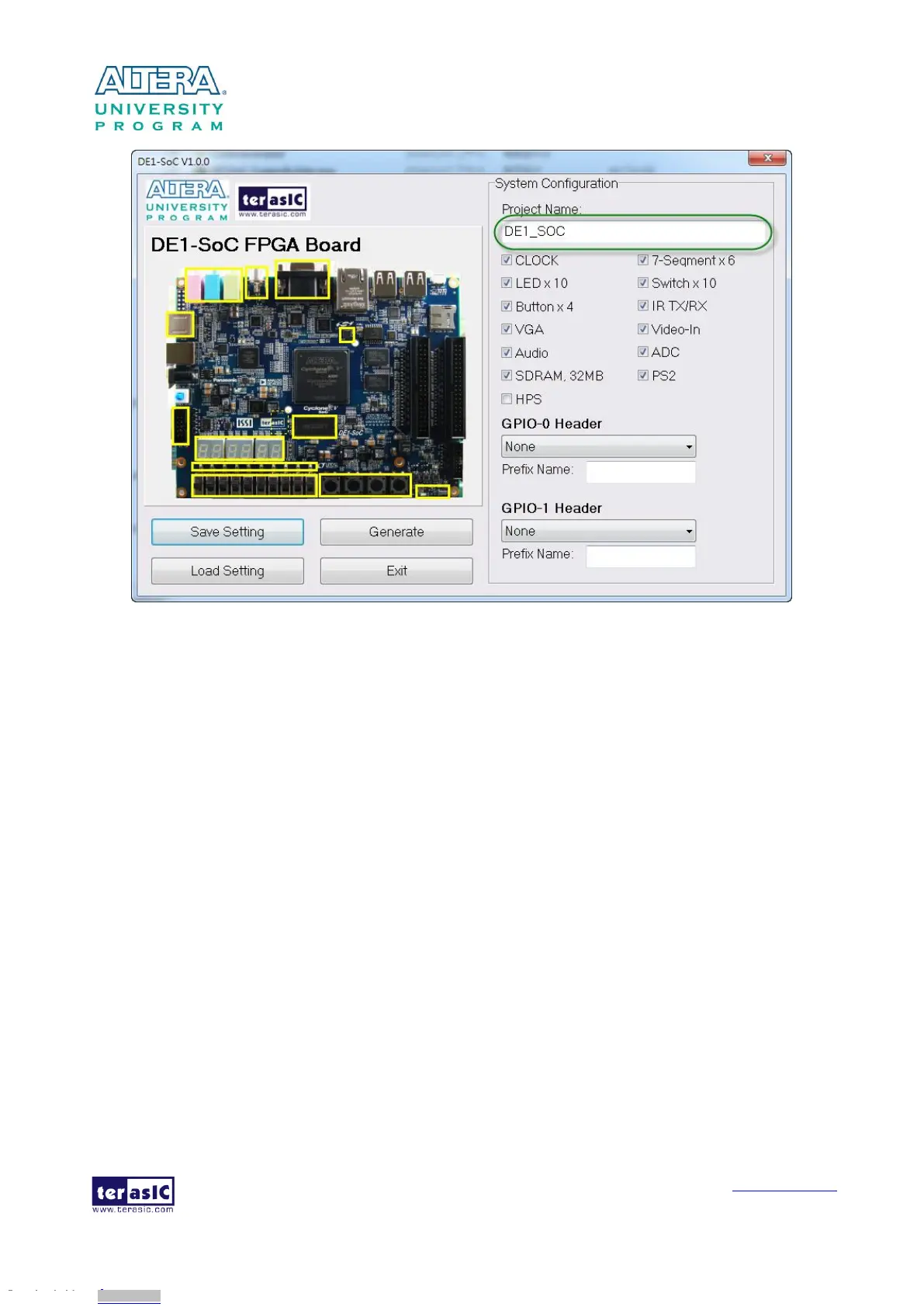

Figure 4-3 Enter the project name
 System Configuration
Users are given the flexibility in the System Configuration to include their choice of components in
the project, as shown in Figure 4-4. Each component onboard is listed and users can enable or
disable one or more components at will. If a component is enabled, the DE1-SoC System Builder
will automatically generate its associated pin assignment, including the pin name, pin location, pin
direction, and I/O standard.
