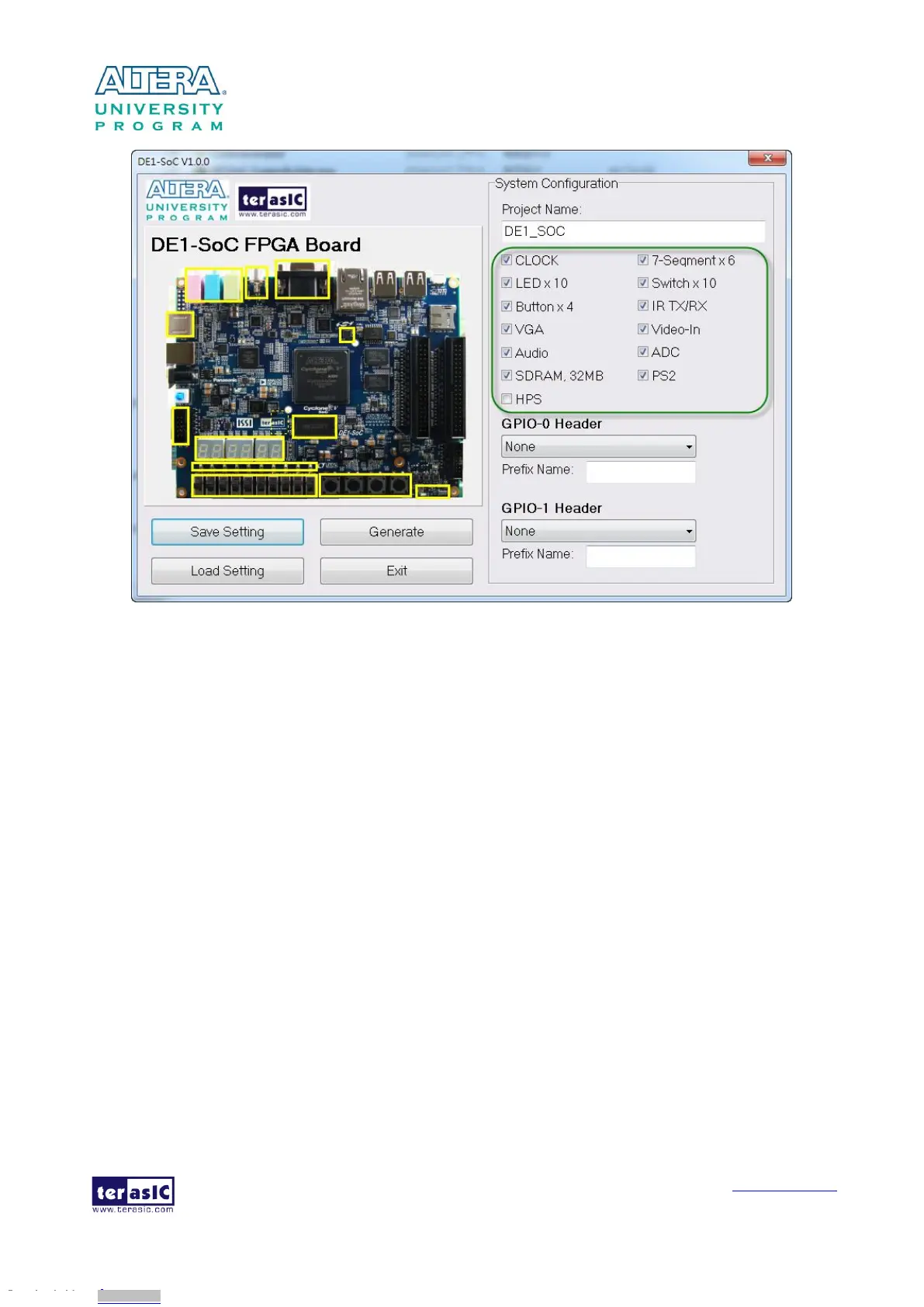

Figure 4-4 System configuration group
 GPIO Expansion
If users connect any Terasic GPIO-based daughter card to the GPIO connector(s) on DE1-SoC, the
DE1-SoC System Builder can generate a project that include the corresponding module, as shown
in Figure 4-5. It will also generate the associated pin assignment automatically, including pin name,
pin location, pin direction, and I/O standard.
