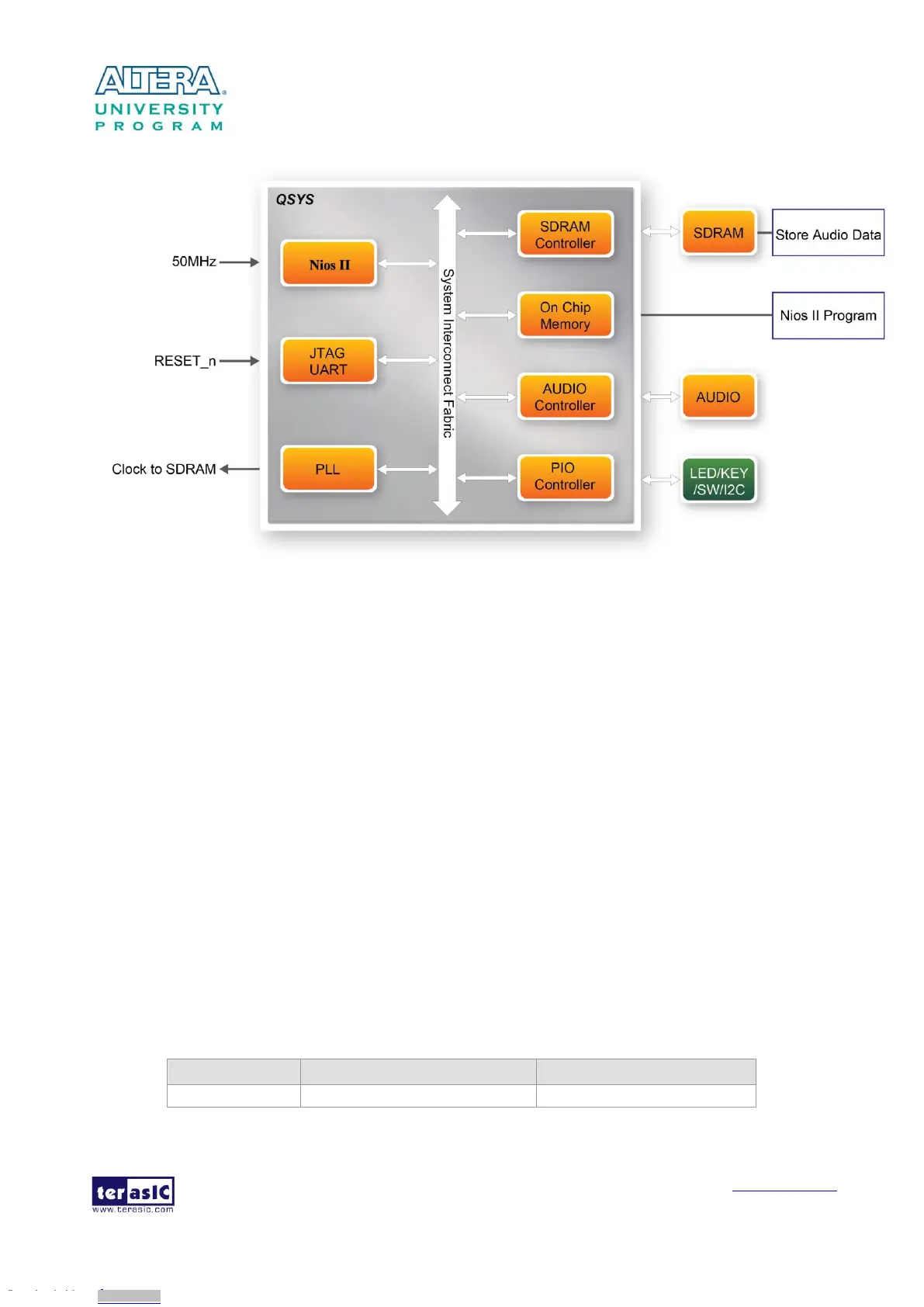

Figure 5-3 Block diagram of the audio recorder and player
 Demonstration Setup, File Locations, and Instructions
 Hardware project directory: DE1_SoC _Audio
 Bitstream used: DE1_SoC_Audio.sof
 Software project directory: DE1_SoC _Audio\software
 Connect an audio source to the Line-in port
 Connect a Microphone to the MIC-in port
 Connect a speaker or headset to the Line-out port
 Load the bitstream into the FPGA. (note *1)
 Load the software execution file into the FPGA. (note *1)
 Configure the audio with SW0, as shown in Table 5-1.
 Press KEY3 to start/stop audio recording (note *2)
 Press KEY2 to start/stop audio playing (note *3)
Table 5-1 Slide switches usage for audio source
Slide Switches
0 – DOWN Position
1 – UP Position
SW0
Audio is from MIC-in
Audio is from Line-in
