5. Installation and Connection
5-1
5. Installation and Connection
(1) Installation Place
CAUTION
!
Install the Power Supply in a sure place at a level with the ground surface. If
the product is operated in inclined or fallen form, a failure will occur.
When planning for the installation, allow at least the figured clearance on each
side from the wall, as referred to the figures below, for improving the effect of heat
release.
Allow at least 10 cm or more from the end of the wiring outlet projected at the
output terminal cover in the rear potion of IS-300A.
As IS-300A should be air-cooled, do not install it in a closed area.

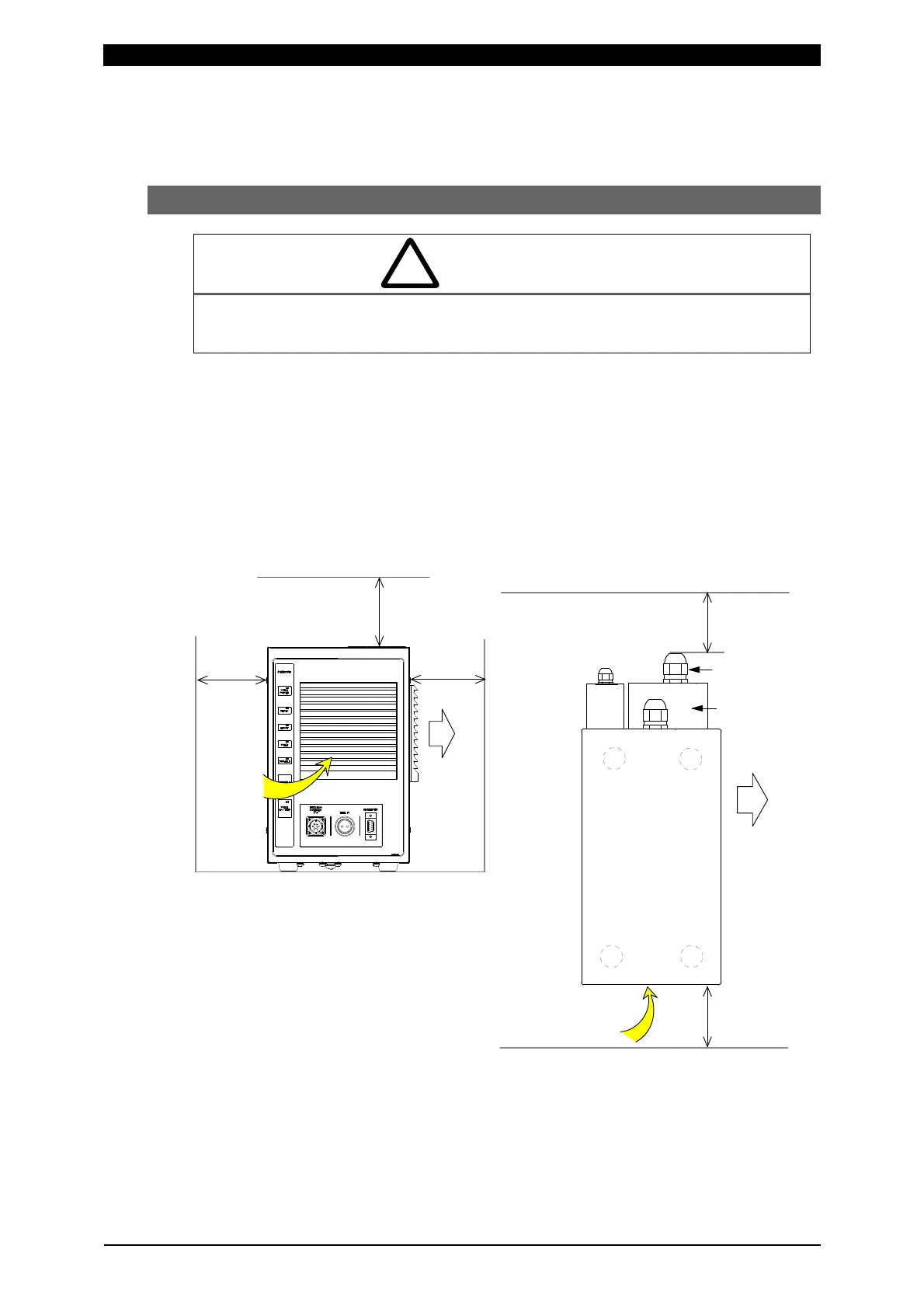

[Front View] [Top View]
10cm or more
Outlet
10cm or
more
Air Inlet
10cm or
more
10cm or more
Air Inlet
Outlet
(Front)
(Rear)
Wiring Outlet
Output Terminal
Cover
10cm or more
