IS-300A
3. Name and Functions of Each Section
3-4
Screw for connecting shielded line
Connect the I/O shielded line.
(3) MA-660A (Sold Separately)

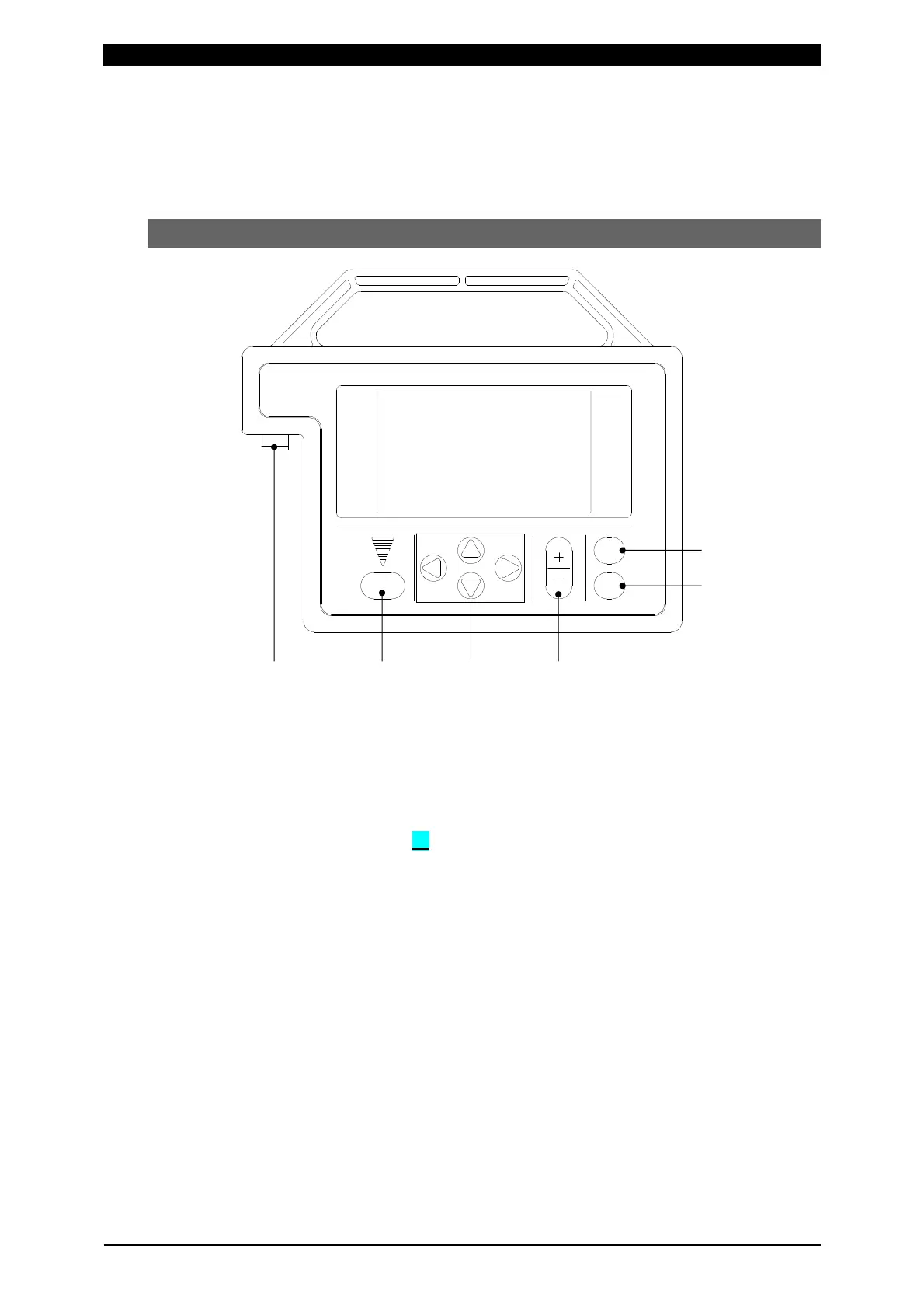

CURSOR
ENTER
MENU
ON
OFFRESET
TROUBLE
TROUBLE RESET key
If this key is pressed while the TROUBLE lamp of IS-300A is lit, the lamp goes
off. It has the same function as the TROUBLE RESET key of IS-300A.
CURSOR keys
Used to move the cursor ( ) to select an item.
+ON/-OFF keys
Used to change the value of a selected item or turn it on and off.
ENTER key
Used to write the set or changed value and [ON/OFF] data in the Power Supply
connected to the MA-660A. After any data is set or changed, be sure to press
this ENTER key to write that data before moving the cursor.
If this ENTER key is not pressed, the Power Supply connected to the MA-660A
does not recognize the set data.
MENU key
Used to display the MENU screen. Press this key to return to the MENU screen
from any other screens.
