6. Interface
6-9
(4) Connection of Input Signals
The input signal current for all input terminals is 2.4
mA/24 V DC.

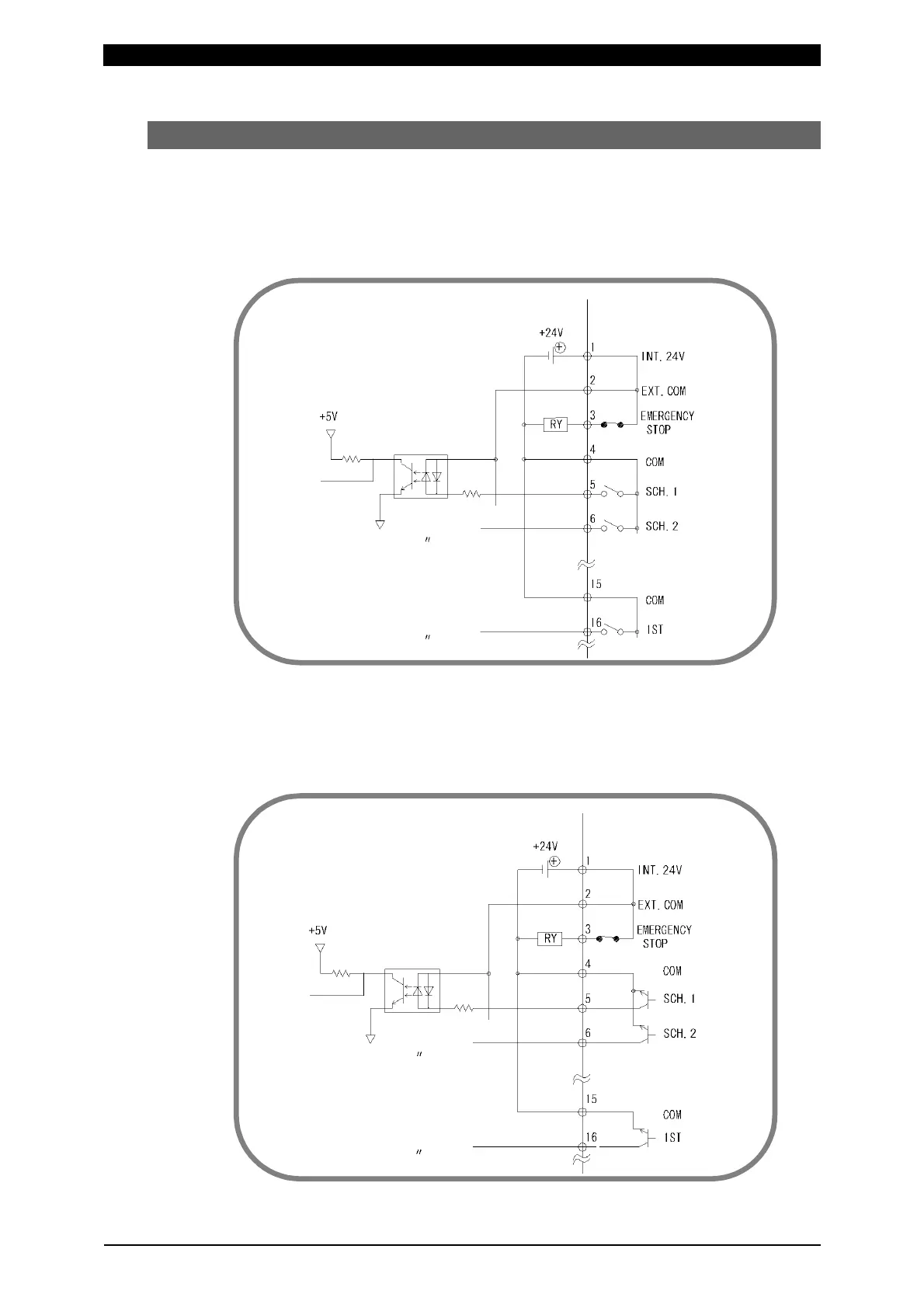

1 Connection with equipment having a contact input
Connect pins 1 and 2.
(Internal) (External)
Internal power supply
2 Connection with equipment featuring NPN open collector output (when using
internal power supply)
Connect pins 1 and 2.
(Internal) (External)
Internal power supply
