5. Installation and Connection
5-10
(5) Noise Filter

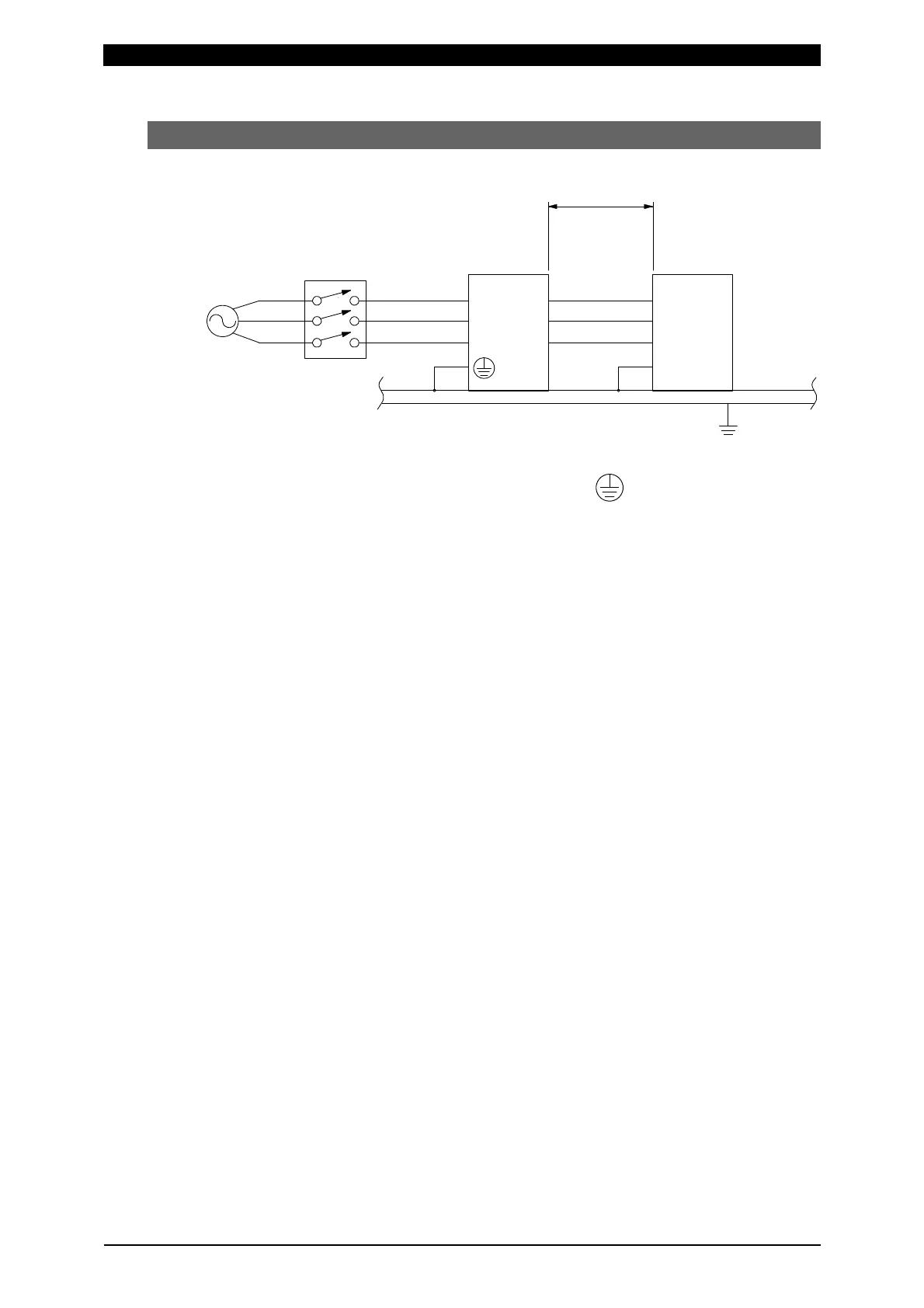

 Connection
L3
L2
L3
L2
PE
L1 L1
Noise filter
LINE side
LOAD side
Earth
leakage
breaker
(OUT)
(IN)
1m max.
IS-300A
 Caution
 Singly connect the protective earth terminal ( ) of the noise filter to the
ground.
 Keep the input-side cable of the noise filter away from the output-side cable
of that.
 Place the noise filter with covers to avoid contact with it.
