IS-300A
6. Interface
6-2
28
29
30
31
32
33
34
35
39
38
37
36
27
26

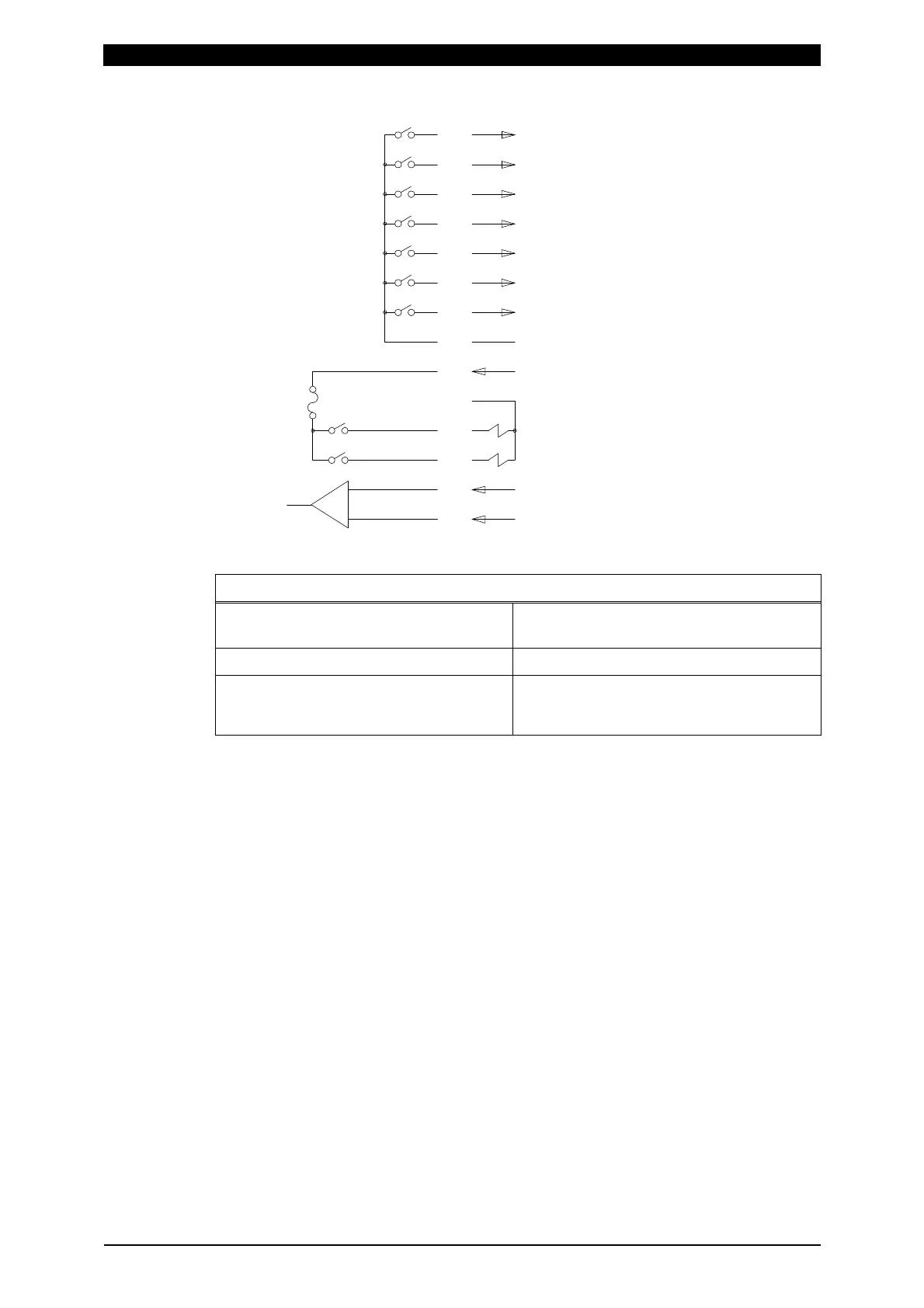

Specifications of Terminal Strip for External Input/Output Signals
Crimp-on terminals allowed to be
installed per a terminal
2 pieces max.
Size of crimp-on terminal M3 or M3.5 (7.1
mm wide)
Recommended cable cross-section
0.75
mm
2
min. for pin nos. 34 to 37
0.5
mm
2
min. for pin nos. 1 to 33, 38
and 39
(Note) Use the shielded cable for the external input/output signals and connect
the shielded part to the screw for connecting shielded line on the rear
panel.
NG1(ERROR)
NG2(CAUTION)
OUT1
OUT2
OUT3
OUT4
OUT5
OUT COM
SOL POWER
SOL COM
SOL 1
SOL 2
VOLT SENS
