The permissible application rate of the implement is limited by the
minimum required agitator capacity.
The agitator capacity per minute should be 5% of the hopper volume.
This is particularly applicable for active substances that are hard to
keep in suspension.
With active substances that are dissolved, the agitator capacity can
be reduced.
Determining the permissible application rate depending on the agitator capacity
Calculation formula for the application rate in l/min:
(Agitator capacity per minute = 5% of the tank volume)
Permissible application rate
=
Pump capacity
-
0.05 x nominal tank volume
[l/min]
[l/min]
[l]
(see technical data)
Conversion of the application rate in l/ha:
1. Determine the application rate per nozzle (divide the permissible
application rate by the number of nozzles).

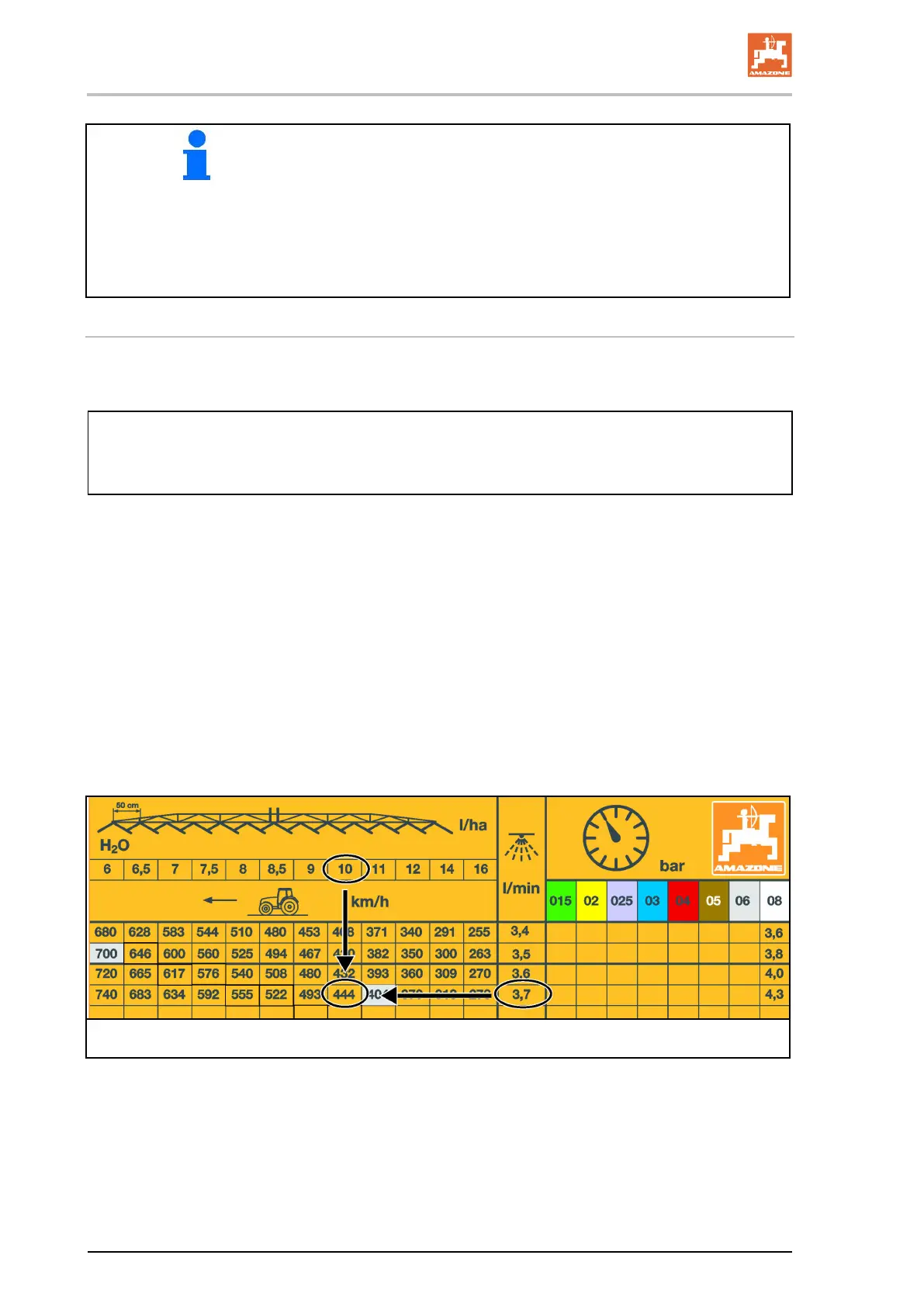

2. Read the application rate per hectare depending on the speed
from the spray table (See page 281).
Example:
Pantera 4502, pump 2 x P 260, Super L 36 m, 72 nozzles, 10 km/h
Permissible application rate
=
490 l/min - 0,05 x 4500 l
= 265 l/min
→
Application rate per nozzle
= 3,7 l/min
→ Permissible appli
cation rate per hectare
= 444 l/ha
