5.13 Hydraulic system
The machine has
• a hydrostatic wheel drive,
• a hydraulic spray pump drive,
• a hydraulic steering system,
• a hydraulic cylinder for the track adjustment, for boom height
adjustment and for folding the boom
• a hydro-pneumatic suspension.
The machine has 3 hydraulic pumps that are flanged direct to the
diesel engine. The hydraulic components are mounted at different
locations on the machine.

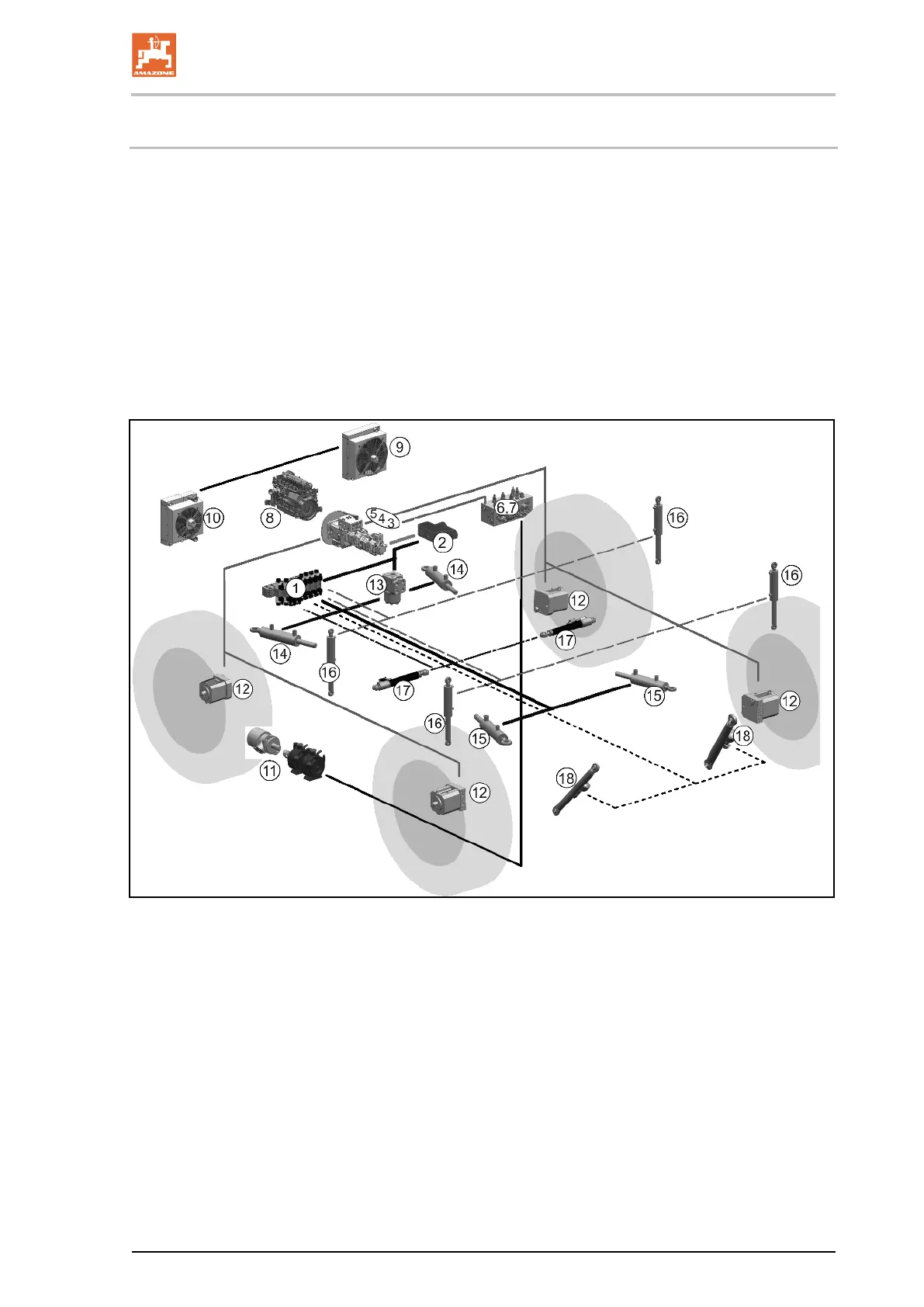

Fig. 27
(1) Valve block 1
(2) Priority valve
(3) Constant pressure pump
(4) Load sensing pump
(5) Driving pump
(6) Valve block 2
(7) Retarder brake
(8) Diesel engine
(9) Radiator fan 1
(10) Radiator fan 2
(11) Sprayer pump drive
(
12) Wheel motor
(
13) Orbitol steering system
(
14) Front steering system
(
15) Rear steering system
(
16) Spring suspension
(
17) Track
(
18) Boom
