5.15.3 Adjusting the driver's seat
The drivers seat is spring suspended and has various adjustment
options.

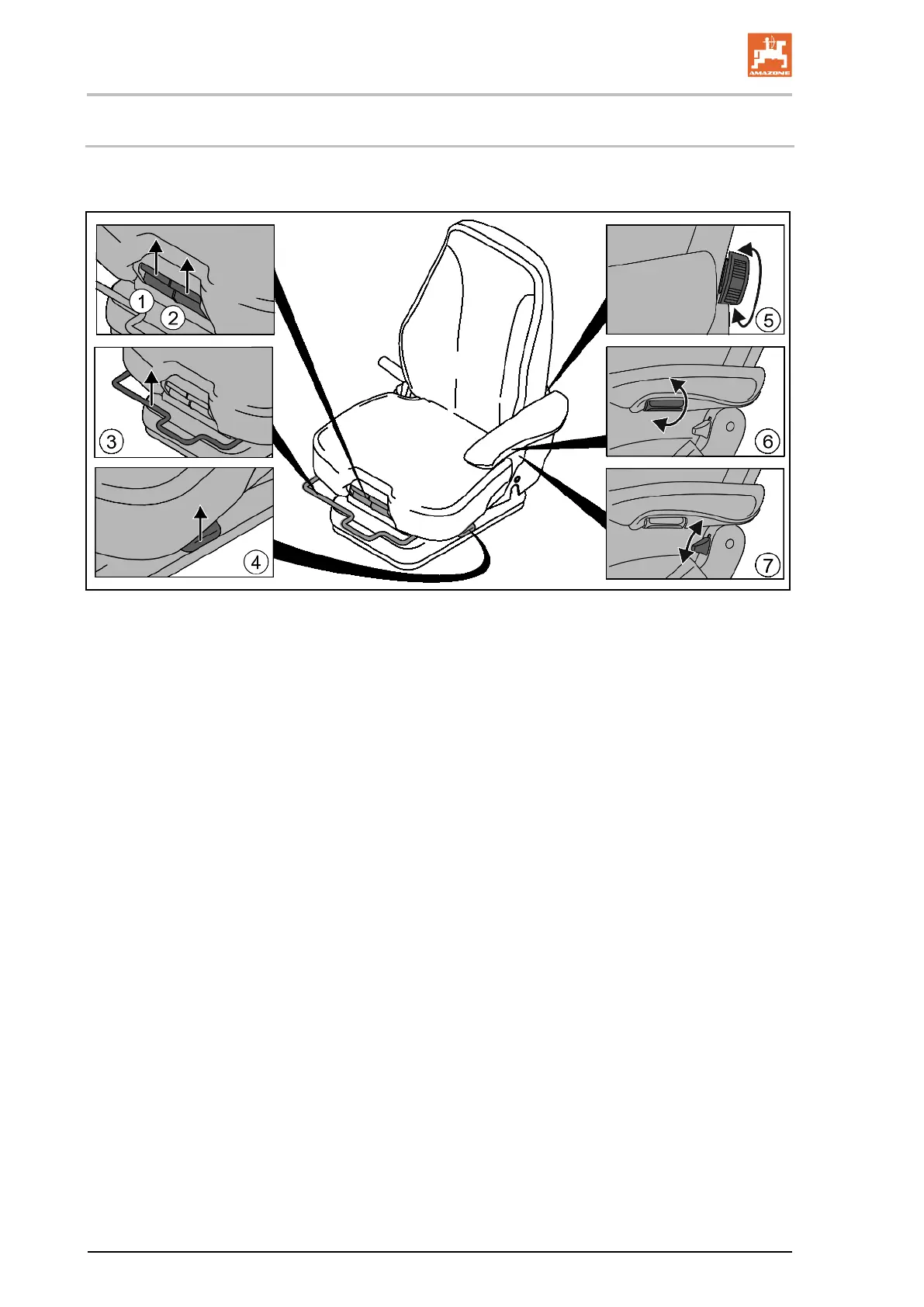

Fig. 35
Adjustments:
(1) inclination of the seat surface
(2) move the seating surface to the front / rear
(3) move the seat to the front / rear
(4) seat height
(5) backrest
(6) inclination of the armrests
(7) inclination of the backrest
