Amazone Pantera 4502 - Hydro-Pneumatic Spring Suspension

Structure and function, carrier vehicle
Pantera 4502 CP1_E3A_E4
BAG0166.5 12.18
63

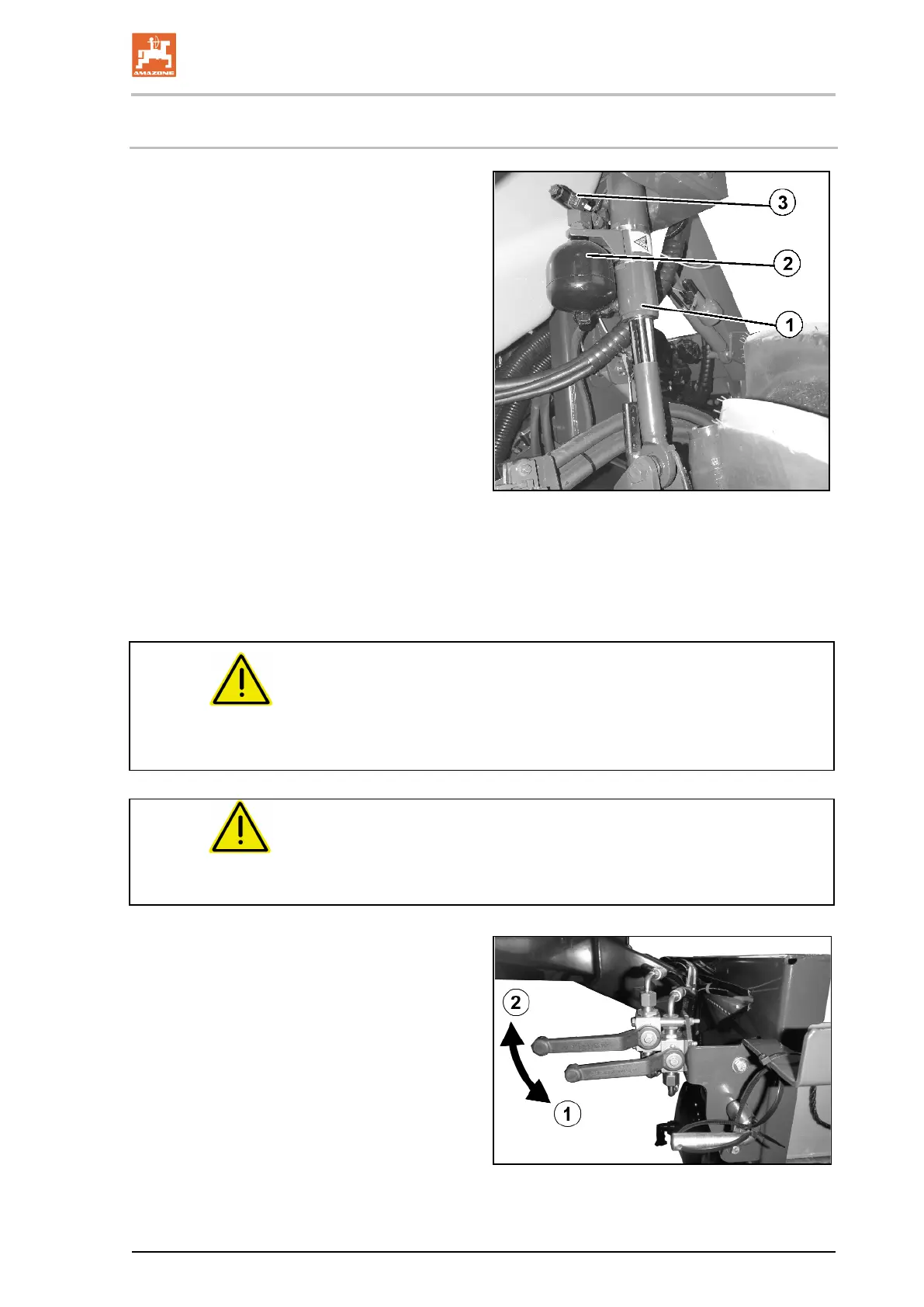

5.10 Hydro-pneumatic spring suspension
The hydro-pneumatic spring suspension contains
an automatic level regulation device independent
of the load status.
Fig. 25/...
(1) Hydraulic cylinder
(2) Pressure accumulator
(3) Valve unit
Fig.
24
When loading the machine, the oil can be
drained from the spring suspension cylinders.
→ This prevents the lashed machine from
swivelling up.
DANGER
Risk of crushing parts of your body between the running gear
and the body when lowering the machine!
Instruct persons away from the machine before lowering the imple-
ment.
CAUTION
Risk of colliding machine parts when lowering the machine.
The track width must be previously set to the minimum value:
Pantera: 1.95 m / Pantera-W: 2.40 m.
• Open the shut-off valves on the hydraulic
block (Fig. 26/1).
→ The machine is lowered.
• Close the shut-off valve (Fig. 26/2):
→ When the engine is running, the machine is
raised back to the standard height.
The shut-off valves are located behind the right
cover under the cabin.
Fig.
25
